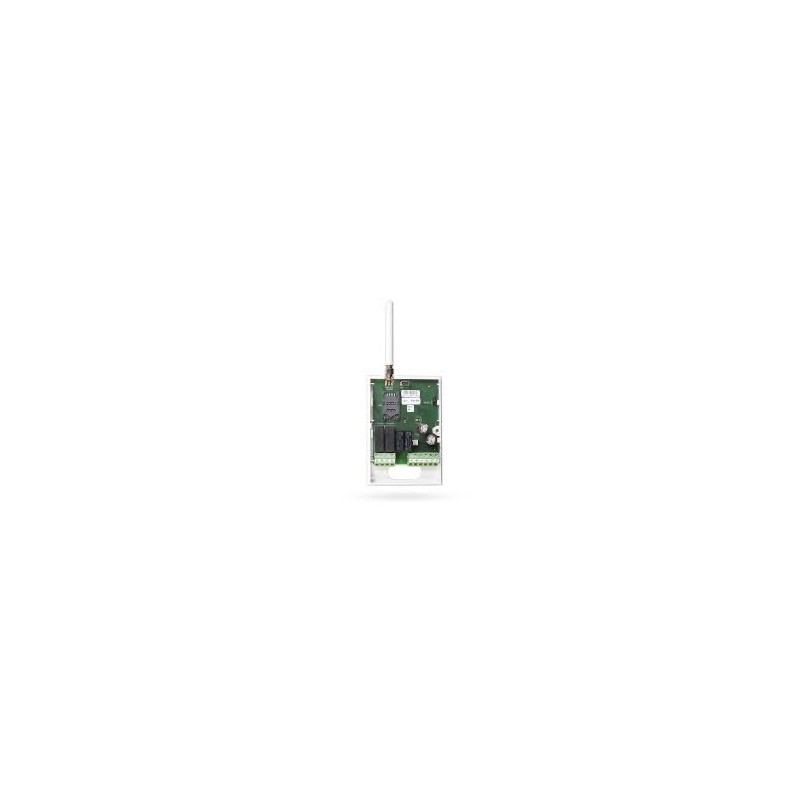

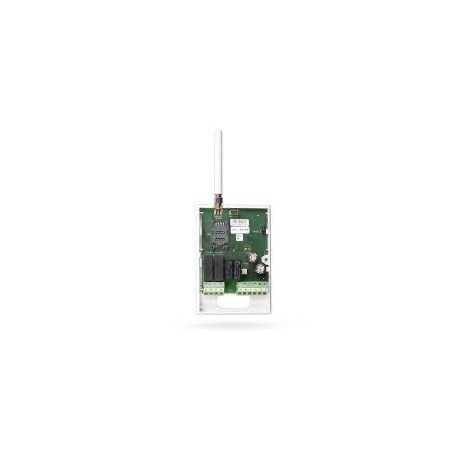

GD-04K Versatile GSM Communicator and Controller

It has 2 power outputs (250V/5A) for control. The outputs can be set as status or pulse (pulse duration from 1s to 10h). When the output is controlled by ringing, a limit on the number of control events can be assigned to each phone number (suitable e.g. for various paid entrances where the phone number should have a certain credit representing the number of entries).

It has 4 inputs that react to ground causing off/on type reports in the form of SMS and ringing. Up to 100 authorized numbers can be set for control and reporting.

GD-04K can also be set locally via USB using GD-Link 2.0 setup software or remotely via the settings website.

Safety operation in the event of a power failure (up to 24 hours) is ensured by connecting the backup module GD-04A (sold separately).

Technical specifications
Voltage 10.5 ÷ 15 V DC
Idle consumption approx. 25 mA (+17 mA per relay)
Max. device consumption during GSM communication 200 mA
Operating band of GSM module E-GSM 850 / 900 / 1800 / 1900 MHz
GSM RF output power 2 W for GSM 850/900
1 W for GSM 1800 / 1900
Triggering of inputs A, B, C, D connections to GND
Output load X and Y:
- resistive load max. 2.5 A/250 V AC
- inductive (capacitive), lamp load max. 0.5 A/250 V AC
Safety EN 60950-1
EMC EN 301489-7, EN 55022 and EN 61000-6-3
Radio emissions ETSI EN 301511
Operating environment II. Indoor general (-10 °C to +40 °C)
Dimensions (without antenna) 76 x 110 x 33 mm
Connection of GSM antenna using SMA connector
