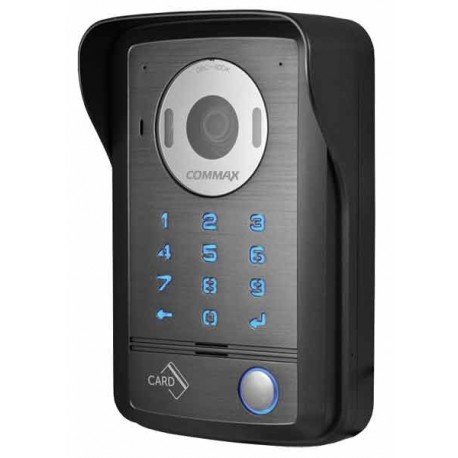

Unit with keypad, for 2 doors DRC-40DK
Wall-mounted unit with keypad for 1 user and 2 doors.
Data sheet
| Mounting type | Surface mounted |
| Power supply | From monitor |
| Wiring | 4-wire |
More info
- 2 Door open camera (CDV-70KR3/70AR3 Connectable)
- 3 way access (PW, RF Card, Videophone)
- Enter the password using 10 key
- Illuminance sensor
- Outdoor model
- Housecall and talk
- Motion detection (PIR)
- Wall-mounted type
Power source: 12VD/1A(Adaptor)
Operation Temp.:-40℃ ~ +40℃
Wiring: 4 wires to a monitor
2 wires to the DOOR 1
3 wires to DOOR 2(non-polarity)
Minimum Illumination: 0.1Lux (up to 300mm)
LightingBuilt-in white LED (3 pie) 2 EA
Imaging angle: 110°diagonal
Camera viewing angle: Horiz. 75° Vert.55°
Distance: 28m(Ø0.5 UTP)
Dimension(mm): 127(W)×193(H)×54(D)
