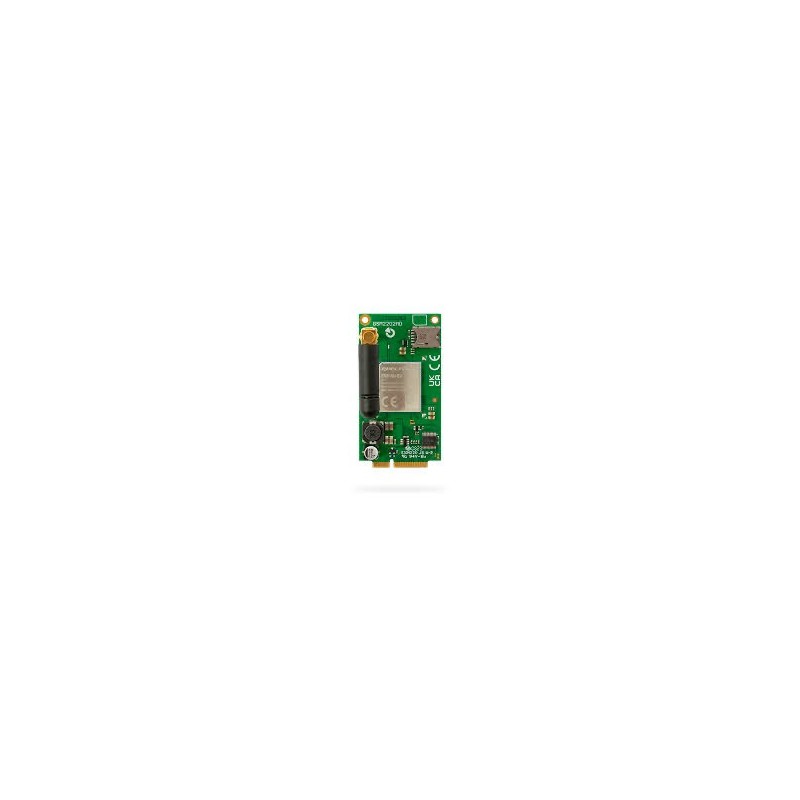

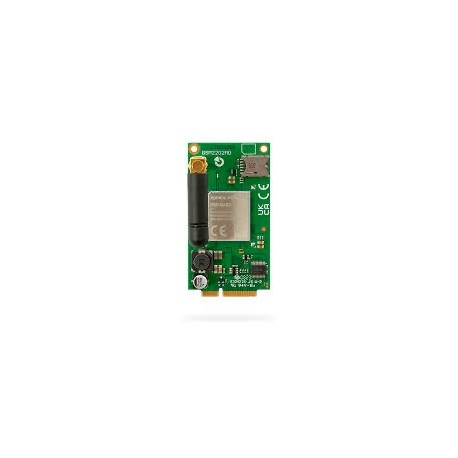

JA-194Y-LITE LTE communicator module
The LTE communicator module is designed to be used with the JA-102K, JA-103K and JA-107K control panel units of JABLOTRON alarm systems.
It is compatible with the MERCURY system
More info
The JA-194Y-LITE LTE Communicator by JABLOTRON ALARMS S.A. ensures reliable and fast communication for your security system. Designed for seamless LTE connectivity, it provides stable data transmission and remote access, keeping your alarm system responsive at all times. Easy to install and highly efficient, this communicator enhances security by enabling instant alerts and real-time monitoring. Stay connected and protected with a trusted solution built for modern security needs.
A control panel fitted with the JA-194Y-LITE module can communicate with an ARC via GSM networks. It also enables remote configuration of the control panel using the F-Link software.
Technical specifications
| Module power supply | 8–15 V DC (from the control panel) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Average current consumption | approx 9 mA (depends on the GSM signal strength) | |||||||||
| Peak current consumption | 720 mA | |||||||||
| GSM communication band | 2G (GSM, EDGE) 900/1800 MHz 3G 900/2100 MHz (B8, B1) 4G (LTE) 800/900/1800/2100/2600 MHz (B20, B8, B3, B1, B7) |
|||||||||
| IHAS classification | Security grade 2/Environmental class II (according to EN 50131-1) (Note: this applies only in combination with a Security-grade-2-certified control panel. For more info about ARC settings, see the Control panel installation manual) |
|||||||||
| Dimensions | 70 x 37 x 25 mm | |||||||||
| Weight | 23 g | |||||||||
| Operational environment | indoor general | |||||||||
| Operational temperature | -10 °C to 40 °C | |||||||||
| Average operational humidity | 75% RH, non-condensing | |||||||||
| Compatible with RCT (ARC receiver) | according to communication protocols | |||||||||
| SPT communicator type | SPT type Z (control panel expansion module) | |||||||||
| AS/SPT interface | Pass-through | |||||||||
Supported ATS class/communication protocol:
|
||||||||||
| Certification body | Trezor Test s.r.o. (No. 3025) | |||||||||
| In compliance with | EN 62368-1, ETSI EN 301 511, EN 50130-4, ETSI EN 301 489-1, ETSI EN 301 489-52, ETSI EN 301 489-17, ETSI EN 301 908-1, ETSI EN 301 908-13, EN 300 328, EN 55032, EN 50665, EN IEC 63000, EN 50131-1, EN 50131-10, EN 50136-1, EN 50136-2, ANSI SIA DC-09 | |||||||||
| Can be operated according to | (CEPT/ECC/DEC/(04)06, ERC/DEC/(97)02, ECC/DEC/(06)01) | |||||||||
