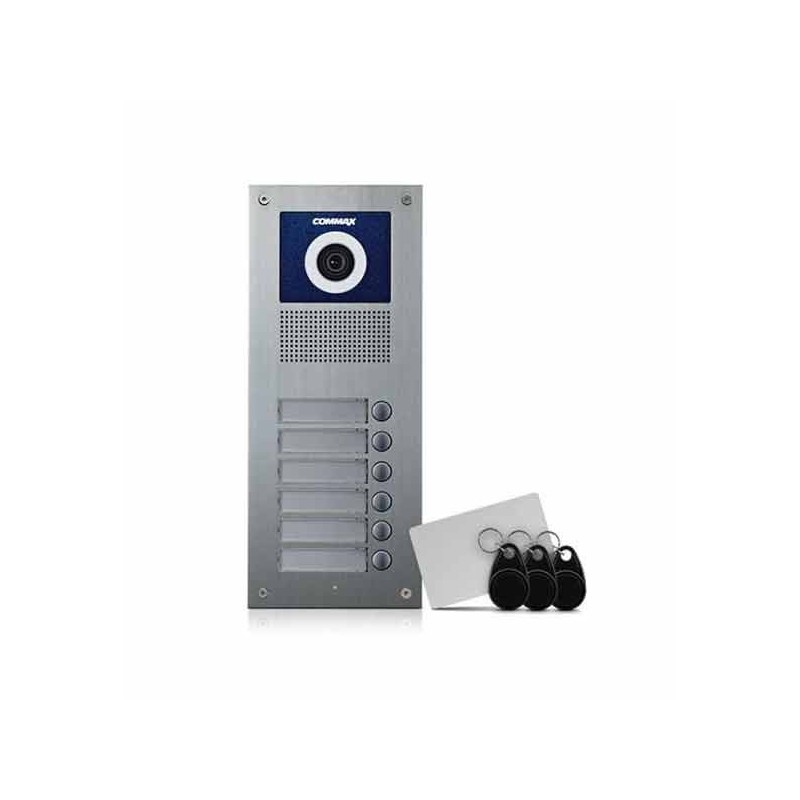

Outdoor unit for 6 apts RFID DRC-6UC/RFID

This device is no longer in production
Replacement device with similar/same specifications : outdoor unit DRC-6UC in combination with card reader SD-ACC-AM06.

Video tutorial about connecting and programming the card reader can be watched here : https://www.youtube.com/watch?v=ruvSyb_fCZs

Intercom with camera and RFID card reader from the Commax range of video intercoms.

This is the Commax line of elegant outdoor calling units of modern design and high mechanical strength with a high quality camera module. The front of the outer panel is made of anodized aluminum and is very resistant to external influences, vandalism and weather conditions. A high-quality and long-lasting color camera module that can be adjusted horizontally and vertically is installed. The outer panel of this video intercom is intended for flush mounting. The front of the outer panel is fastened with safety screws.

All models of the DRC-nUC line have the same functional equipment and differ only in the number of buttons. Classic Commax wiring of the system is used: 4 conductors for each monitor + 2 conductors for powering the outdoor unit of the system.

All types of video intercoms and other Commax equipment can be connected to these outdoor units.

Intercom with six-button camera:
Wiring 26 conductors
Recording chip: 1.4inch CCD SONY color, 540 TVL
Shooting angle: 68 ° / 55 °, adjustable lens ± 15 ° horizontally and vertically
Lighting under nameplates and pushbuttons
Additional lighting of the monitored area with LED lighting up to 70 cm
Adding new tenants / users using an RFID card or PC software.
Free PC software for system management, system and computer connection using USB.
Maximum number of RFID input authorization users: 990.
Adjusting the open time of the relay (lock): 1-9 sec
The built-in internal memory remembers 1000 recent events and can be exported to an Excel spreadsheet if required.
The internal memory of the outdoor unit of the intercom is powered independently and is not subject to erasure in the event of a power failure (system power supply).
Power supply: 12V (DC)
Panel dimensions: 130 × 315 × 10 mm (flush-mounted box dimensions: 121 × 304 × 36 mm)
Intercom with camera and RFID reader
