> >>>DIN-rail mounted relay UR-01

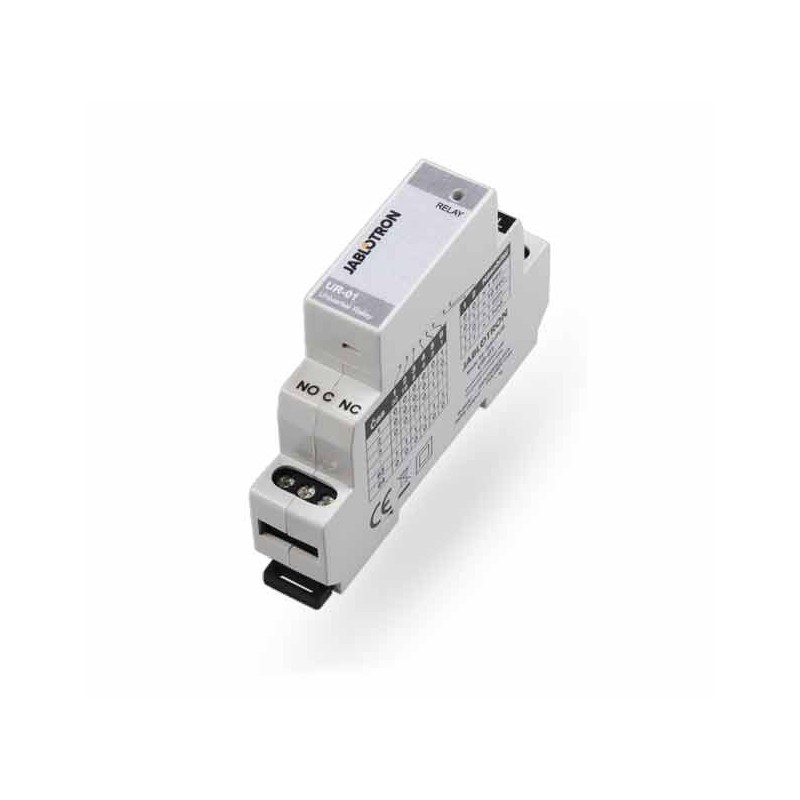

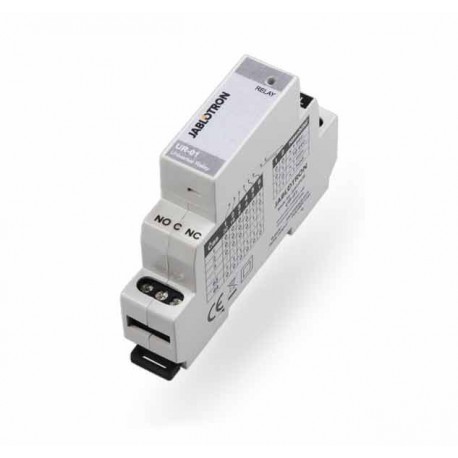

JAB Modul opće namjene, relej za DIN šinu UR-01 View larger

DIN-rail mounted relay UR-01

UR-01

New product

JABLOTRON ALARMS S.A.

The Jablotron UR-01 is a universal DIN‑rail relay (1 DIN module) for 230 V AC installations. It provides NO/NC contacts rated up to 16 A and eight selectable operating modes set via DIP switches, suitable for lighting, fans, heating and other loads.

More details

More info

Overview
The UR-01 by Jablotron is a compact, DIN‑rail mounted universal relay. Settings are made using DIP switches under the removable cover; an LED indicates switching status.

Functions

  • Switching relay – standard NO/NC operation
  • Bistable relay – e.g. multi‑point light switching
  • Bistable with time limit – bistable mode with maximum on‑time
  • Delayed turn‑off – e.g. keep fan running after leaving a room
  • Delayed turn‑on – e.g. start motor in star–delta sequence
  • Pulse on rising signal – activate device for preset time
  • Pulse on falling signal – e.g. switch on fan after lights go off
  • Periodic pulses – regular activation intervals (e.g. 10 min)

Technical data and terminals
Supply: 230 V AC (50 Hz). Relay contacts for resistive load up to 16 A/250 V. Dimensions: 18 × 90 × 65 mm (1 DIN module). Terminals: L (mains live), N (neutral), A (activation input), C (common), NO/NC (output contacts). Timing is set via FUNCTION, MULTIPLIER and TIME DIP switches.

Installation & safety
Designed for indoor DIN‑rail installation. Wiring must be performed by a qualified electrician. Disconnect mains before installation or service.

Applications
Suitable for lighting control, ventilation, heating, small motor control and other automation tasks where timed or pulse switching is required.
