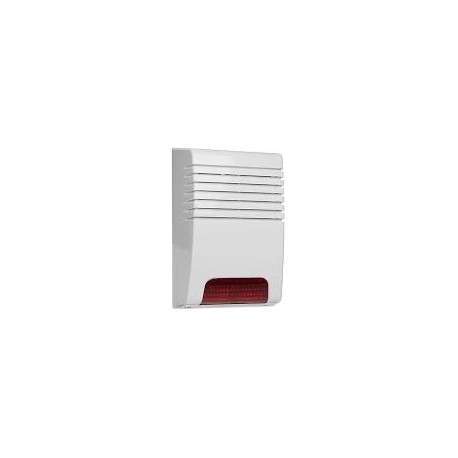

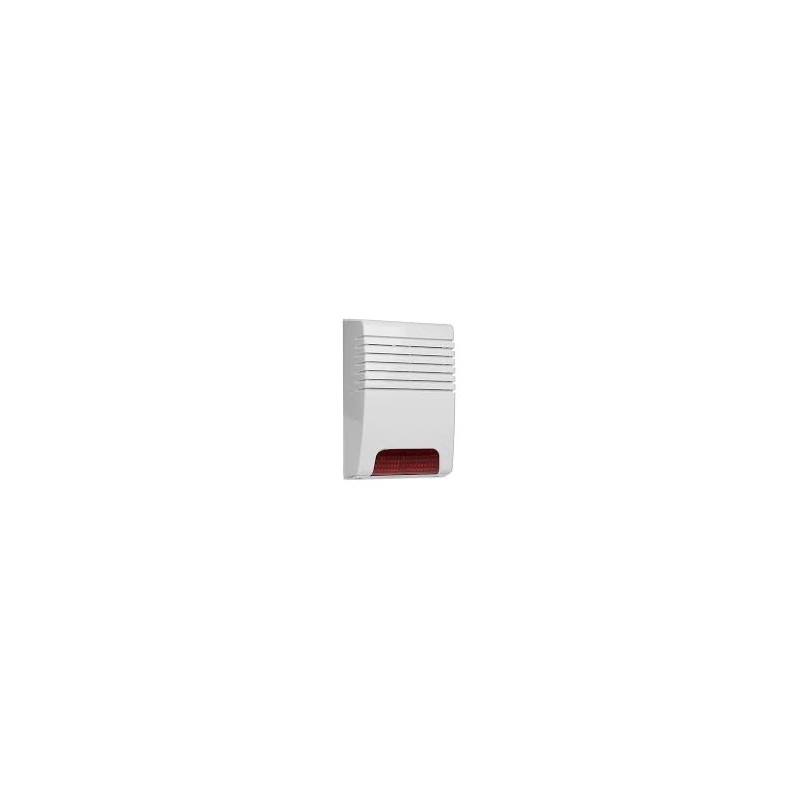

OS-350 Siren
The OS-350 is an outdoor non-backup siren combining a loud acoustic siren with a flashing light. The flashing light helps to locate the active siren. Optional piezo-electric siren (ACM-OS360).
More info
The siren’s housing is made of mechanical, weather and UV resistant plastic. The electronic circuit board is protected against air humidity by double-layer varnish. The device is protected by two magnetic tamper switches. If higher security is demanded, we recommend using the OS-360 or the OS-365 backup outdoor siren.
Technical specifications
| Power supply | 10 to 17 V DC |
|---|---|
| Consumption | 250 mA/12 V |
| Siren | piezo-electric, 112 dB /1 m |
| - with second piezo-electic siren (ACM-OS360) | 116 dB/1 m |
| Enclosure | IP 34D |
| Security grade 2 | EN 50131-1, EN 50131-4 |
| Environmental class IV | -25 to +60°C |
| Dimensions | 230 x 158 x 75 mm |
| EMC | EN 50130-4, EN 55022 |
| Safety | EN 60950-1 |
