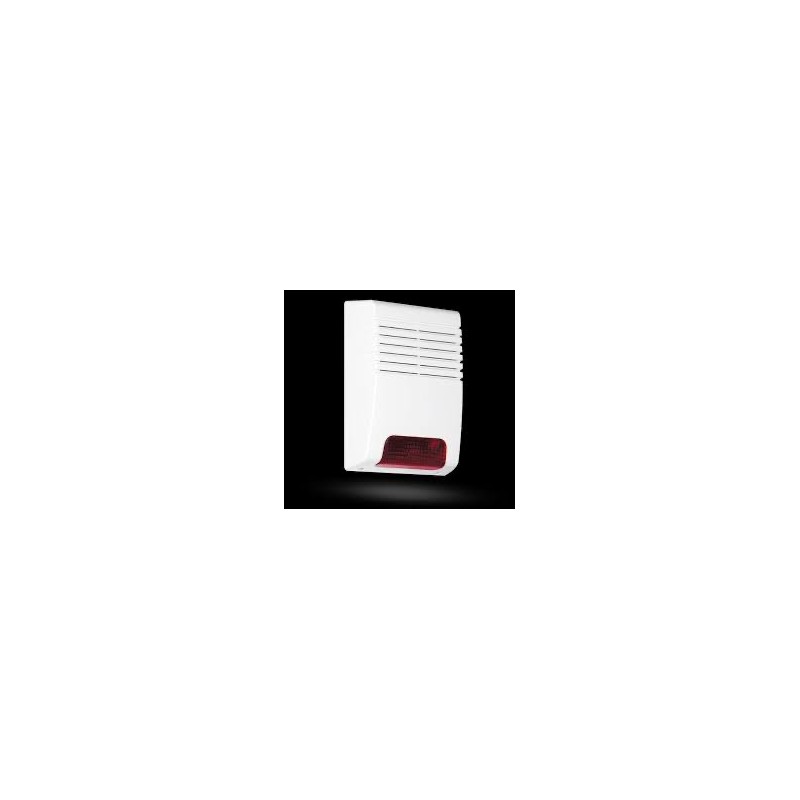

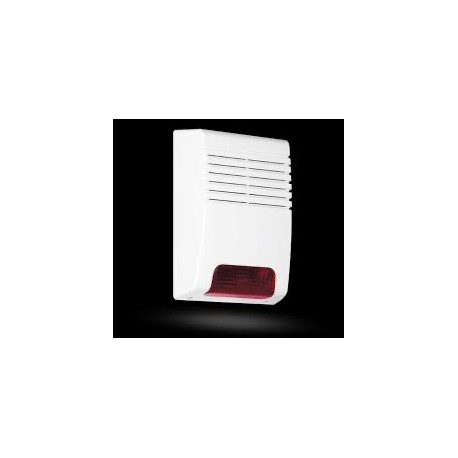

OS-365A Outdoor Siren

The OS-365A is equipped with a magneto-dynamic siren that is mainly suitable for single-family homes or buildings with more space around them. Two tamper switches are built into the unit. They react to removing the cover from the unit or removing the siren from the wall. The siren housing is made of plastic resistant to mechanical, weather and UV radiation. The board is protected from moisture in the air by a double layer of varnish.

Technical specifications
Power supply 10 to 15 V DC
Standby consumption < 50 mA/12 V
Maximum load consumption < 800 mA/12 V
Backup battery NiCd pack 4.8 V/1800 mAh
Lifetime approx. 3 years
Electroacoustic siren volume 110 dB/1 m
Siren timer max. 5 minutes
Flashing time, alarm duration +15 minutes/0
Protective loop resistance < 70 Ohms
Housing IP 34D
Security level 2 EN 50131-1, CLC/TS 50131-4
Operating environment class IV, outdoor general
Operating temperature -25 to +60°C
EMC EN 50130-4, EN 55022
Safety EN 60950-1
Dimensions 230 x 158 x 75 mm
