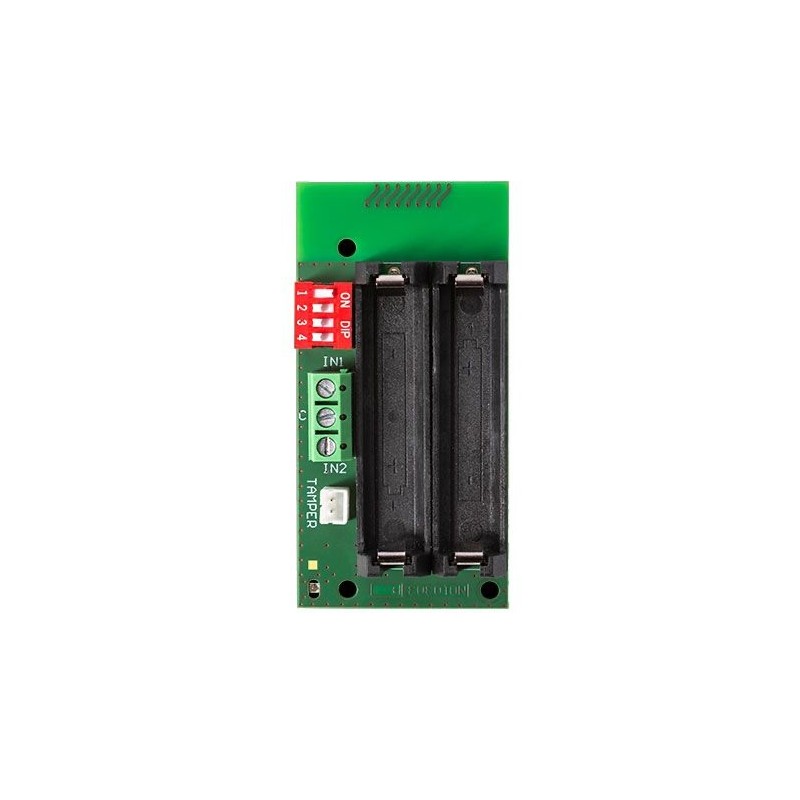

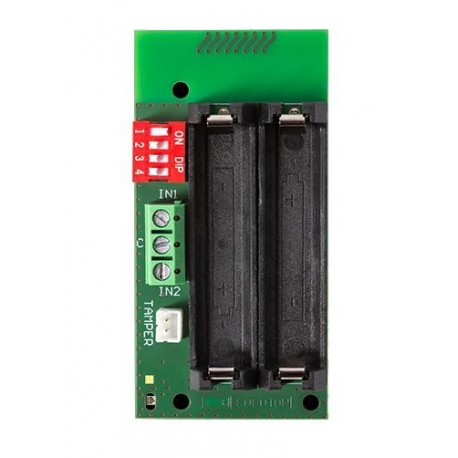

JA-162M Wireless module with two universal inputs

JA-162M is a compact radio input module designed to connect wired detectors to the Jablotron system. Each of the two universal inputs can be configured for NO, NC or pulse operation, enabling flexible use with magnetic contacts, flood sensors and other dry-contact devices.

When paired with the CT-01 roller shutter movement sensor, the module can detect manipulation of external shutters. The unit is intended for installation and commissioning by trained technicians holding a valid Jablotron certificate from an authorized distributor.

Technical specifications

• Power: 2 x alkaline battery, type AAA (LR03; 1.5 V / 1 Ah). Batteries not included.
• Typical battery lifetime: up to 2 years (max. 4 activations daily).
• LowBatt state: <2 V.
• Current consumption: quiescent 10 μA, max 50 mA.
• Communication: 868.1 MHz, JABLOTRON protocol, ERP 8 mW; range approx. 300 m (open area).
• Max cable length for external detectors: 3 m.
• Dimensions / Weight: 38 x 76 x 15 mm / 22 g.
• Operating conditions: indoor general, -10 °C to +40 °C, 75% RH without condensation.
• Classification & compliance: Security grade 2 / Environmental class II (EN 50131-1) with JA-195PL; complies with EN 50131-1, EN 50131-3, EN 50131-5-3, EN 50131-6, ETSI EN 300 220-1,-2, EN 50130-4, EN 55032, EN IEC 62368-1, EN IEC 63000.
• Certification body: Trezor Test s.r.o. (no. 3025).
• Recommended mounting screws: 2 x ø 3.5 x 40 mm (countersunk head).

Place the module to ensure reliable radio link to the control panel and avoid sources of RF interference. Regular battery checks and using the specified battery type help maintain dependable operation.
