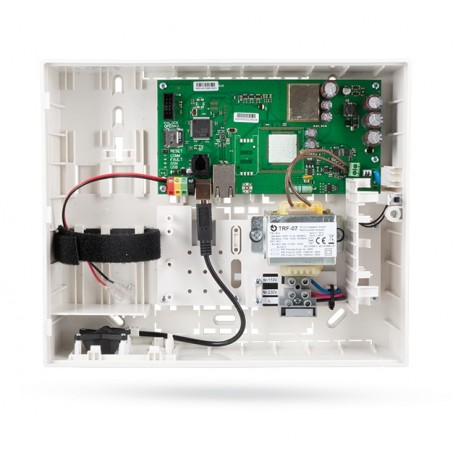

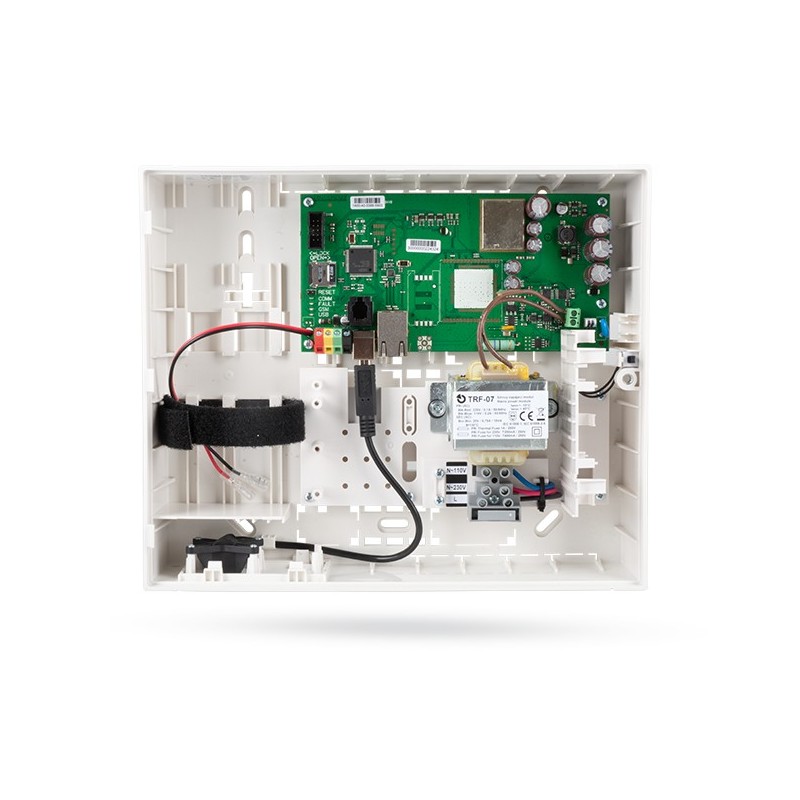

Control panel JA-14K

JA‑14K is a JA‑10 series security control panel equipped with an integrated LAN communicator and support for JA‑111R radio modules. Intended for small to medium systems; installation and commissioning should be performed by a trained technician.

• Supports up to 32 wireless or BUS devices.
• Up to 16 + 3 user codes (configuration dependent).
• Up to 4 sections and up to 4 programmable PG outputs.
• 10 independent schedules for timed operations.
• SMS and voice reporting to up to 8 users; configuration allows registration to up to 5 ARCs.
• Supported alarm transmission protocols include JABLO IP, SIA IP, Contact ID and JABLO SMS; message encryption min. AES 128‑bit.
• LAN interface: Ethernet CAT5 (RJ‑45). Enables data exchange with ARC and Jablotron Cloud and full use of the MyJABLOTRON app.
• Power: ~230 V / 50 Hz (also supports ~115 V / 60 Hz), backup battery 12 V, max. 2.6 Ah.
• Dimensions: 268 × 224 × 83 mm; weight approx. 1.45 kg. Operating temperature: -10 °C to +40 °C.
• Event history stored on microSD — capacity for several million records depending on card size.

The panel offers modular configuration and allows a mixed BUS and wireless installation (when fitted with JA‑111R). The LAN communicator provides reliable IP communication paths and cloud connectivity for remote monitoring and control via MyJABLOTRON.

Follow the product manual and applicable standards for system design and commissioning. Keep firmware of the control panel and connected devices up to date during installation and maintenance.
