Control panel JA-14KR

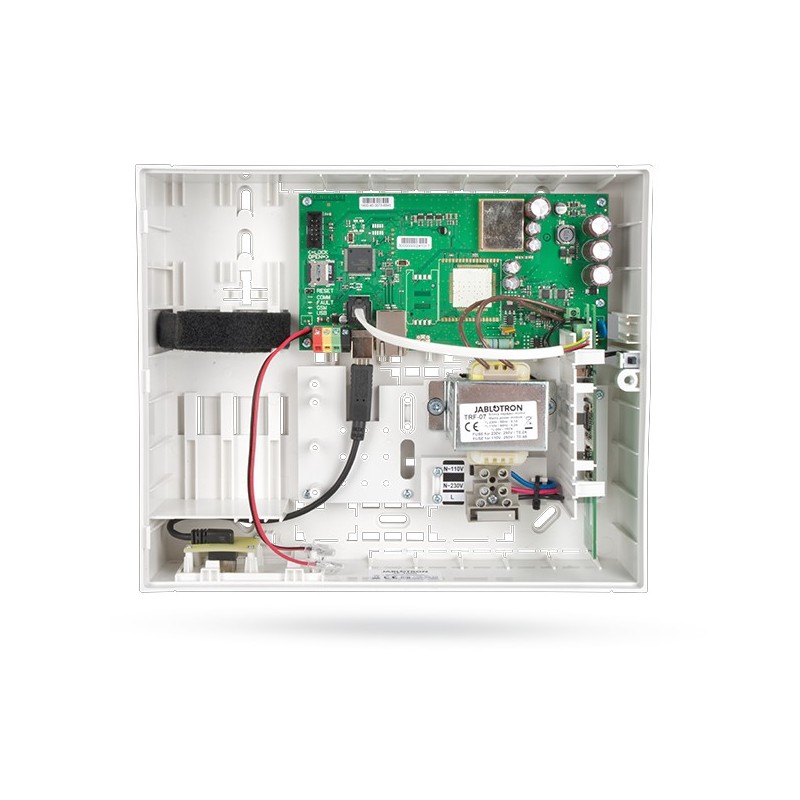

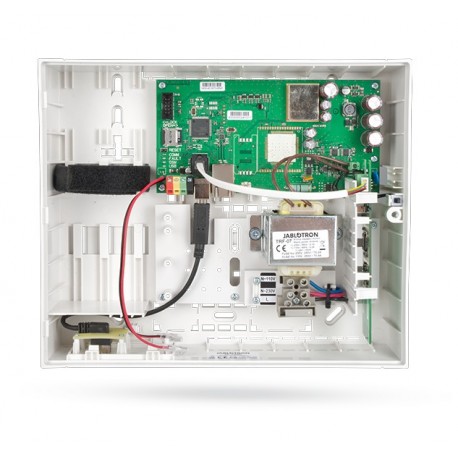

JA-14KR is the core control panel of the JABLOTRON JA‑10 series, intended for apartments, family homes and small business premises. The JA‑14KR kit includes the control PCB with a pre‑installed JA‑111R radio module and an integrated LAN communicator for cloud services and ARC connectivity.

The panel supports mixed BUS and wireless peripherals — up to 32 devices in total. It allows 16 + 3 user codes, up to 4 independent sections (areas), 4 programmable PG outputs and 10 independent calendar schedules.

Events and remote reporting are handled via the built‑in LAN communicator; optional communicators JA‑190Y (GSM/GPRS) or JA‑190X (PSTN) provide redundancy. The panel can be configured to report to alarm receiving centres (ARCs) in compliance with EN 50136 and supports the main alarm transmission protocols: JABLO IP, SIA IP, Contact ID and JABLO SMS.

• Up to 32 wireless or BUS devices
• Up to 16 + 3 user codes
• Up to 4 sections
• Up to 4 programmable PG outputs
• 10 independent schedules
• SMS and voice reporting to up to 8 users
• Maximum 3 JA‑111R radio modules supported

The panel features a microSD slot (recommended 4 GB or larger) for event and image storage, a USB service connector and BUS terminals. Recommended backup battery: SA‑214/2.6 Ah. Maximum BUS cable length is 500 m.

Dimensions: 268 × 224 × 83 mm; weight approx. 1.45 kg; operating temperature ‑10 °C to +40 °C. System setup and advanced configuration are performed using N‑Link software; full user functionality and remote access are available via the MyJABLOTRON application.
