> >>>>Wireless access module JA-154E
JAB Pristupni modul sa  RFID čitačem, displayem i tipkovnicom, bežični JA-154E View larger

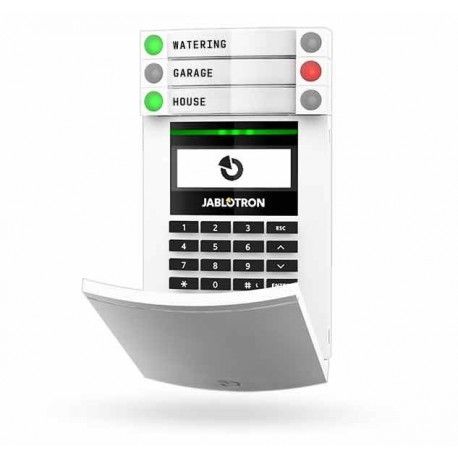

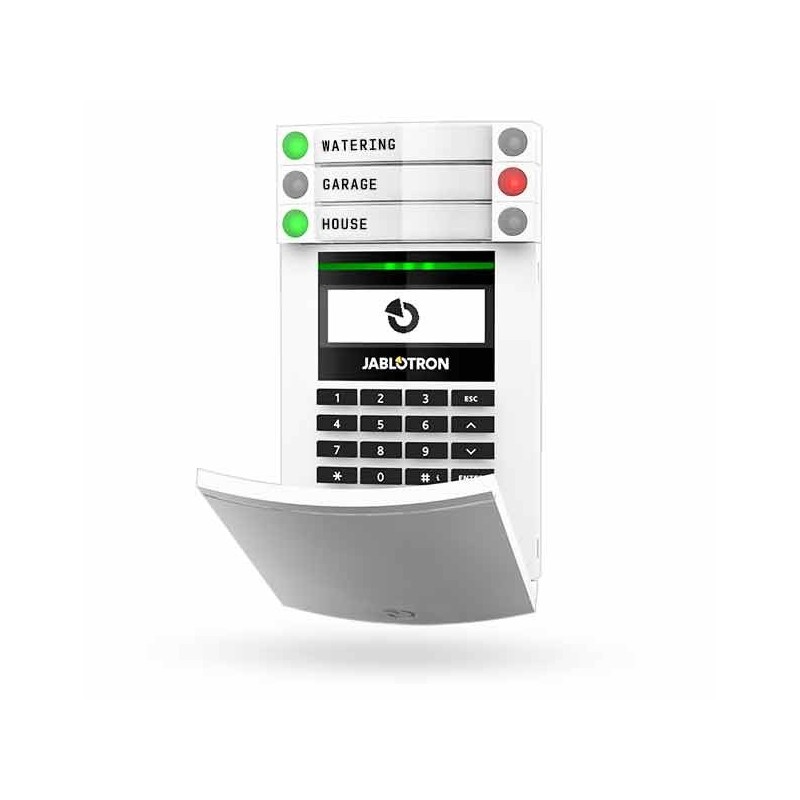

Wireless access module JA-154E

JA-154E

New product

JABLOTRON ALARMS S.A.

Wireless access module with LCD display, keypad and 125 kHz RFID reader for control and user authorization in the JABLOTRON 100+ system.

More details

Data sheet

Connection method Wireless

More info

JA-154E Wireless access module

The JA-154E is a two-way wireless access module featuring an LCD display, keypad and an integrated 125 kHz RFID reader for system control and user authorization within the JABLOTRON 100+ platform. The module occupies one address and can be expanded with up to 20 JA-192E control segments for interlocking control and status display.

The unit implements Smart Radio Wake-up (SRW) which ends sleep mode automatically when a linked wireless detector triggers during the entrance delay, allowing faster access while the system is armed. Communication uses the JABLOTRON protocol at 868.1 MHz.

Power is supplied by 4 x alkaline AA batteries (LR6) 1.5 V (batteries not included). Typical battery life is 1–2 years depending on settings and usage. The device is certified as Grade II and intended for indoor general environment (EN 50131‑1 II).

Key specifications

  • Display and keypad for local operation
  • Built-in 125 kHz RFID reader for card/tag access
  • Supports up to 20 JA-192E control segments (interlocking)
  • Smart Radio Wake-up (SRW) to exit sleep mode on input events
  • Radio: 868.1 MHz JABLOTRON protocol, up to 200 m open range; ERP 15 mW
  • Power: 4 x AA (LR6) 1.5 V; external power input 0.5 W

JA-154E is suitable for professional installations where a compact local control panel with RFID access and clear status display is required. It complies with relevant EN and ETSI standards listed in the technical data.

Download

Europski certifikat JA-154E

Download (1.53M)

Dekl. o sukladnosti JA-154E

Download (165.53k)

Tehnička specifikacija JA-154E

Download (169.85k)

Uputa proizvođača JA-154E

Download (1.09M)
