> >>>>Access module with RFID and keypad JA-123E
JAB Pristupni modul sa  RFID čitačem i tipkovnicom, vanjski, BUS JA-123E View larger

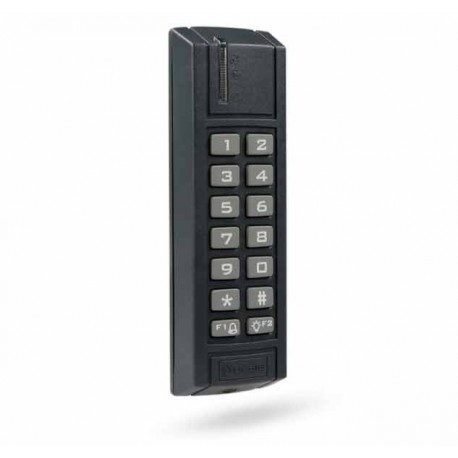

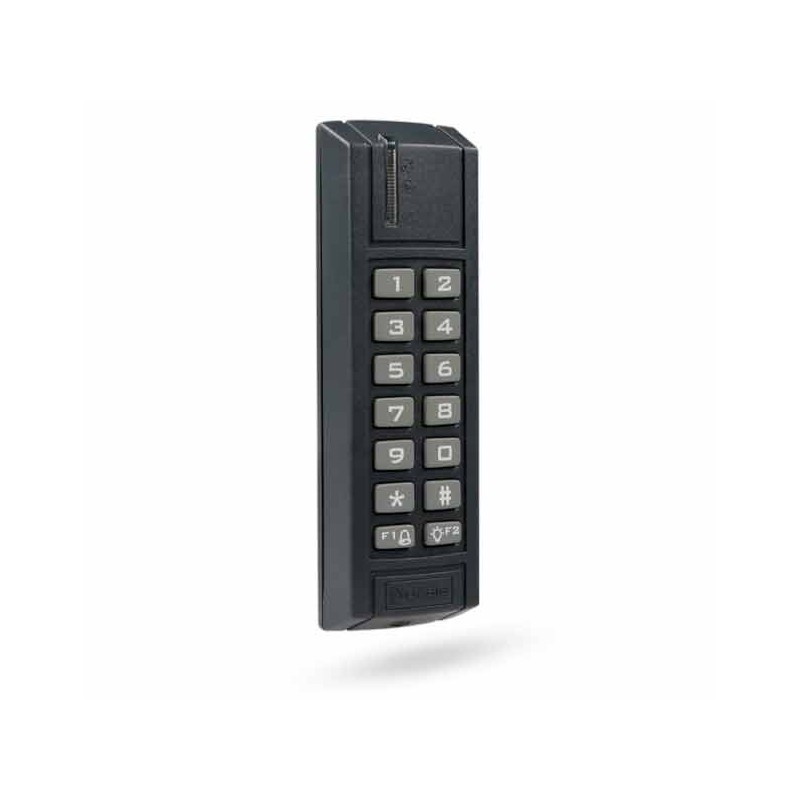

Access module with RFID and keypad JA-123E

JA-123E

New product

JABLOTRON ALARMS S.A.

 BUS access module with RFID and keypad, very suitable for outdoor conditions.

More details

Data sheet

Connection method BUS

More info

The RFID card reader and keypad can be used for the activation of a PG output by which you can control access to an area by, for example, an electric lock or a security system.

Power from control panel digital bus (9…15 V)
Current consumption in standby mode 15 mA
Current consumption for cable selection 15 mA
Cover EN 60529 IP65
Mechanical strength EN 50102 IK08
RFID frequency 125 kHz
RFID cards JABLOTRON 100 and EM Unique 125kHz
Dimensions 46 x 151.5 x 22.5 mm
Connection cable length 3.0 m
Operating temperature range -25 to +60 °C
Operational environment EN 50131-1 IV. Outdoor general
Classification Grade 2
according to EN 50131-1, EN 50131-3
Also complies with ETSI EN 300330, EN 50130-4, EN 55022, EN 60950-1

Download

Europski certifikat JA-123E

Download (1.53M)

Dekl. o sukladnosti JA-123E

Download (170.08k)

Tehnička specifikacija JA-123E

Download (157.41k)

Uputa proizvođača JA-123E

Download (520.8k)

Accessories

  • Elektro prihvatnik STRNF412, BSZ, 12V

    Reference: STRNF412

    Electric strike STRNF412

    No electricity =closed. For left and right doors. Excellent for PVC joinery. Long-lasting and reliable with a large workforce.12-15V AC/DC

  • Elektro prihvatnik STRNF412-ST sa statusom, BSZ, 12V

    Reference: STRNF412-ST

    Electric strike with status STRNF412-ST

    No electricity =closed. For left and right doors. Excellent for PVC joinery. Long-lasting and reliable with a large workforce and status indication.12-15V AC/DC

  • Elektro prihvatnik STRNF512, BSO, 12V

    Reference: STRNF512

    Elektro prihvatnik STRNF512, BSO, 12V

    No electricity = open. For left and right doors. Excellent for PVC joinery. Long-lasting and reliable with a large workforce.12VDC

  • JAB Alarmna centrala sa LAN komunikatorom JA-103K

    Reference: JA-103K

    Brand: JABLOTRON ALARMS S.A.

    JA-103K

    The core element of the JABLOTRON 100+ security system. A control panel for protecting family houses, offices and smaller companies.

  • JAB Alarmna centrala sa GSM/GPRS i LAN komunikatorima JA-103KRY

    Reference: JA-103KRY

    Brand: JABLOTRON ALARMS S.A.

    JA-103KRY

     Control panel with LAN, GSM and radio module

  • JAB Alarmna centrala JA-107K sa LAN komunikatoron

    Reference: JA-107K

    Brand: JABLOTRON ALARMS S.A.

    JA-107K

     Control panel with LAN communicator. It is designed for large living spaces, offices and businesses.
