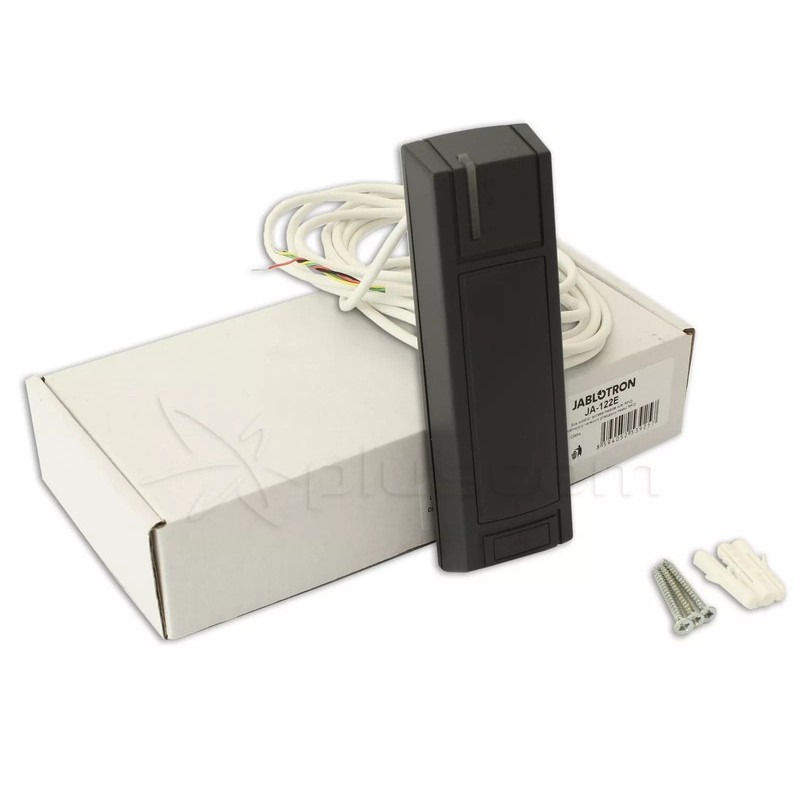

JA-122E-NFC Bus outdoor RFID reader 13.56 MHz

JA-122E-NFC

New product

JABLOTRON ALARMS S.A.

The JA-122E-NFC is an outdoor BUS RFID reader for activation of a PG output (e.g. electric lock). It provides card reading and optical status indication and is compatible with JA-103K and JA-107K control panels.

More details

More info

JA-122E-NFC — BUS outdoor RFID reader

The JA-122E-NFC is designed for user identification at entrances and for activating a PG output on the control panel, for example to release an electric lock. The unit contains only the reading electronics and an optical status indicator; authorization logic and PG behaviour are managed by the control panel or via F-Link configuration.

After a valid authorization, the reader can activate a selected PG and optionally trigger an entry delay (depending on the section settings). It supports PG functions configured as Impulse or Change in the control unit.

Key benefits include a weather-resistant outdoor housing suitable for entrance installation, support for common NFC/MIFARE media, and direct BUS connection to JABLOTRON control panels for secure, managed access control.

  • Power supply: from the control panel bus, 12 V DC (8–15 V)
  • Quiescent current: 12 mA; Maximum current: 60 mA
  • RFID frequency: 13.56 MHz; Max. magnetic field strength: 10.37 dBuA/m (3 m)
  • Compatible cards: NFC, Mifare® Classic, Mifare® DESFire® 4, 7 Byte UID
  • Dimensions / weight: 46 x 151.5 x 25 mm / 193 g
  • Connection cable: 3.0 m
  • Operating range: -25 °C to +60 °C; 75% RH without condensation
  • Environment & classification: EN 50131-1 environment IV (outdoor general); grade 2 according to EN 50131-1, EN 50131-3
  • Standards: ETSI EN 300330, EN 50130-4, EN 55032, EN 62368-1, EN IEC 63000
  • Recommended screw: 3 × ø 3.5 × 40 mm (half-round head)

Installation notes: mount the reader on a solid surface near the entry point, route the BUS cable according to installation rules and register the reader in the control panel. Configure authorization actions and the target PG in the central unit (F-Link) before commissioning.

JA-122E-NFC is intended for professional JABLOTRON 100/100+ installations requiring a robust outdoor reader with BUS integration for controlled access.
