> >>Independent controller Partizan PAS-EMHK12

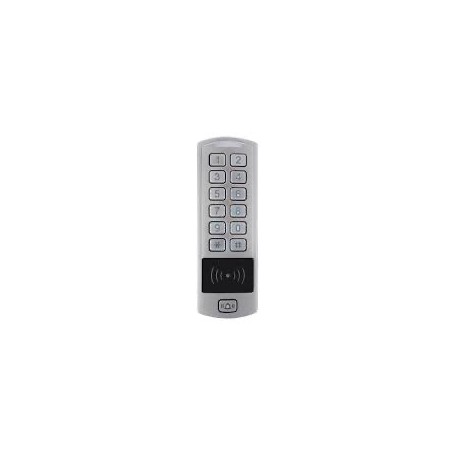

Samostalni kontroler Partizan PAS-EMHK12 View larger

Independent controller Partizan PAS-EMHK12

PAS-EMHK12

New product

Partizan Security s.a.

The Partizan PAS-EMHK12 is a standalone controller with built-in card reader and keypad for one door. It supports Wiegand 26–37 and EM‑Marin/Mifare/HID formats, stores up to 600 users, and features an IP66 metal housing and -40 to +60 °C operating range.

More details

More info

Overview
Partizan PAS-EMHK12 is a standalone access controller with an integrated card reader and keypad. Designed for one door, it supports operation as a reader or as an autonomous controller and accepts two reader connections via Wiegand 26–37 interface.

Identification & storage
Built-in reader supports EM‑Marin, Mifare and HID identifiers (125 kHz and 13.56 MHz). The controller holds up to 600 users in non-volatile memory and can read up to 2 cards per second. Visual and audible indicators are provided along with an exit-button input.

Outputs & electrical
Electric lock output is rated at <2 A; alarm output is <2 A. Standard wiring and Wiegand-compatible reader integration apply for access and alarm interfaces.

Mechanical & environmental

  • Housing: metal, IP66
  • Power: DC 12 V / 100 mA
  • Size: 150 x 51 x 23 mm; Weight: 500 g
  • Operating temperature: -40 °C to +60 °C
  • Warranty: 3 years

Application
Suitable for outdoor and indoor standalone access control where a keypad and integrated reader are required—typical for gates, service entrances and industrial access points.
