ID čitač kartica sa šiftarorom SD-ACC-AM03 View larger

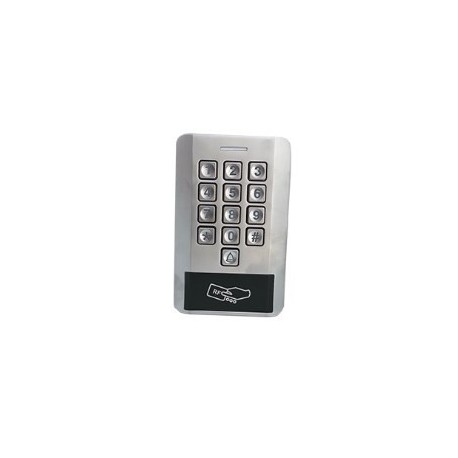

ID card reader with keypad SD-ACC-AM03

SD-ACC-AM03

New product

Durable ID card reader with keypad for up to 6000 users. Supports 125 kHz proximity cards and PIN codes; power 12V+-10%, operating temp. 0 to 60 C.

More details

More info

SD-ACC-AM03 is an ID card reader with an integrated numeric keypad for PIN entry and user management. It is designed for access control points where card and/or code authentication is required and can handle a large user base without dedicated central hardware.

Key specifications:

  • User capacity: 6000
  • ID card type: 125 kHz (proximity)
  • Reading range: 5 cm
  • Power supply: 12V+-10%
  • Dimensions: 120*80*23 mm
  • Operating temperature: 0 to 60 C

The reader provides standard user management functions: setting a general (master) code, changing the programming code, adding user cards and deleting users via card or code. Other features and step‑by‑step configuration are described in the manual shipped with the device.

Its compact dimensions allow wall mounting at doors, gates or internal access points. Ensure a stable 12V supply within the specified tolerance for reliable operation. Reading range depends on card type and installation; perform a site test during installation to find the optimal position.

SD-ACC-AM03 is suitable for standalone access control installations or for integration into larger systems — verify compatibility when planning system integration and follow the manufacturer's manual for secure deployment.

Accessories

  • Reference: STR54ADF412

    Elektro prihvatnik STR54ADF412 12V DC, BSZ, MM, MK

    Standard electric receiver from the Symmetric series suitable for left and right doors. Closed without electricity. Housing made of stainless steel. Mechanical switch for activation of mechanical memory. Adjustable locking element with the possibility of adjusting the locking element 4 mm. Mechanical unlocking. 12VDC

  • Reference: STR54AF

    Elektro prihvatnik STR54AF 8-12V AC/DC, BSZ, MM, MP

    Standard electric receiver from the Symmetric series suitable for left and right doors. Closed without electricity. Housing made of stainless steel. Mechanical switch for activation of mechanical memory. Adjustable locking element with the possibility of adjusting the locking element 4 mm. 8-12V AC/DC.

  • Reference: STR54AF412

    Elektro prihvatnik STR54AF412 12V DC, BSZ, MM

    Standard electric receiver from the Symmetric series suitable for left and right doors. Closed without electricity. Housing made of stainless steel. Mechanical switch for activation of mechanical memory. Adjustable locking element with the possibility of adjusting the locking element 4 mm. Mechanical unlocking. 12VDC

  • Reference: STR54NF412

    Elektro prihvatnik STR54NF412 12 VDC, Standard, BSZ

    Standard electric receiver from the Symmetric series suitable for left and right doors. Closed without electricity. Housing made of stainless steel. Mechanical switch for activation of mechanical memory. Adjustable locking element with the possibility of adjusting the locking element 4 mm. Mechanical unlocking. 12VDC

  • Reference: STR54NF512

    Elektro prihvatnik STR54NF512 12V DC, BSO

    Standard electrical receiver from the Symmetric series suitable for left and right doors. Open without electricity. Housing made of stainless steel. Mechanical switch for activation of mechanical memory. Adjustable locking element with the possibility of adjusting the locking element 4 mm. Mechanical unlocking. 12VDC

  • Reference: STR99-2NDF512

    Elektro prihvatnik STR99-2NDF512 10-24V AC/ DC , Mali, BSO

    Due to its small dimensions, this model of electric lock - electric receiver is suitable for all applications. From installation in the most ordinary wooden doors to modern wood-aluminum joinery elements. This model is intended for operation in circuits with nominal voltages of 10-24 V, which gives it additional flexibility and significantly expands the...

  • Reference: STR99-2NF

    Elektro prihvatnik STR99-2NF 10-24V AC/ DC , Mali, BSZ

    Mini electrical receiver, Symmetric series, suitable for both left and right doors. Housing made of stainless steel. This model is intended for operation in circuits with nominal voltages of 10-24V, which gives it additional flexibility and expands the area of use. Closed without electricity.

  • Reference: STR99AADF

    Elektro prihvatnik STR99AADF 10-24V AC/ DC, MM, MK, MINI, BSZ

    Mini electrical receiver, Symmetric series, suitable for both left and right doors. Housing made of stainless steel. This model is intended for operation in circuits with nominal voltages of 10-24V, which gives it additional flexibility and expands the area of use. Closed without electricity.

  • Reference: STR99NDF512

    Elektro prihvatnik STR99NDF512 12DC, MK, MINI, BSO

    Mini electrical receiver, Symmetric series, suitable for both left and right doors. Housing made of stainless steel. Open without electricity. It has a mechanical brake.

  • Reference: STRADF-GX

    Elektro prihvatnik STRADF-GX 6-12V AC/DC, Standard MIJENJA GA: STR54ADF

    Simple electric strike for general use. Installation in the jamb (stock). Power supply with two conductors. Small dimensions, built-in mechanical memory (MM). Power supply 6-12 V AC / DC.

  • Reference: DR-15-12

    Power supply - DIN rail 12V DR-15-12

    12V / 15 W / 1,25 A - DIN rail

  • Reference: DR-30-12

    Power supply 12V DR-30-12

     12V / 30 W / 2,5A - DIN rail

  • Reference: ID-TAG-RFID-ABS0001

    ID-TAG-RFID-ABS0001

  • Reference: ID-TAG-RFID-ABS0002

    ID-TAG-RFID-ABS0002

  • Reference: ID-TAG-RFID-ABS0010

    ID-TAG-RFID-ABS0010

  • Reference: ID-TAG-RFID-ABS003

    ID-TAG-RFID-ABS003

  • Reference: ID-TAG-Mifare-1K

    ID tag Mifare-1K

    ID Token MIFARE 1K, blue
