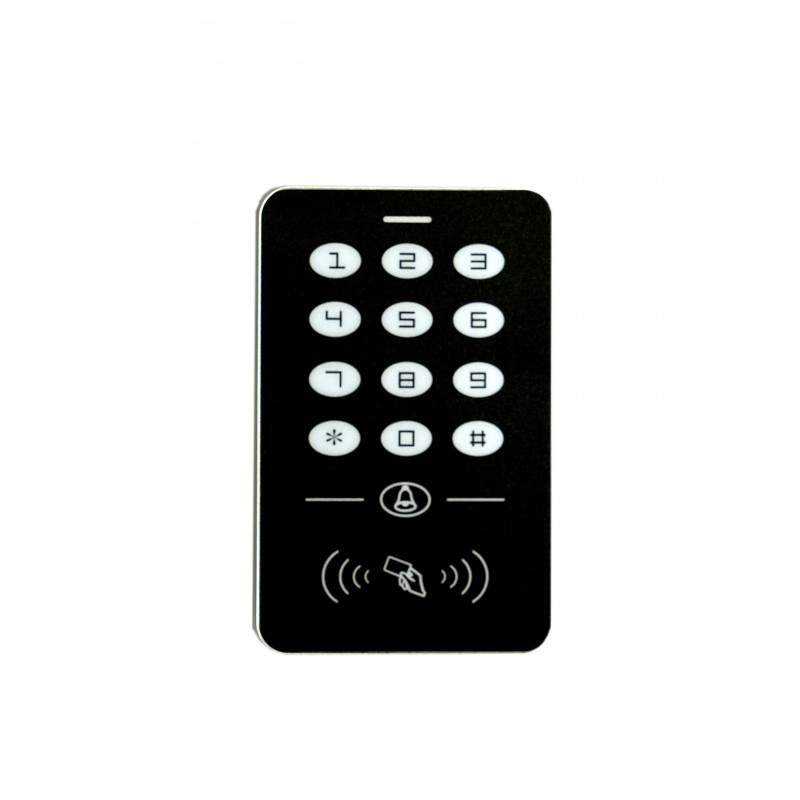

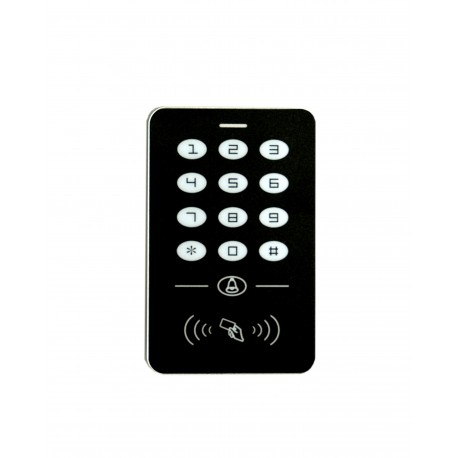

ID card reader with controller SD-ACC-AP01

SD-ACC-AP01

New product

SD-ACC-AP01 is a standalone ID card reader/controller for door access with 1,000-user capacity and built-in doorbell. Supports 125 kHz proximity cards, powered from 12V+-10% with an effective read range up to 5 cm.

More details

More info

SD-ACC-AP01 is a compact ID card reader with an integrated controller designed for basic access control applications. Basic functions include setting a general code, changing the programming code, enrolling user cards and removing users by card or code; full instructions are provided with the unit.

Technical data (preserved from source): Power supply: 12V+-10%
Dimensions: 125*55*21 mm
Operating temp.: 0 to 60 C
Number of users: 1000
ID card type: 125 kHz
Range: 5 cm
The unit includes a built-in doorbell for visitor signalling.

The device is suitable for installers and integrators who need a straightforward, standalone encoder/reader. Programming is performed via the built-in command sequence; see the supplied manual for detailed configuration and safety notes.

Features:

  • Standalone reader with encoder and integrated doorbell
  • Capacity up to 1,000 users
  • 125 kHz proximity card support, reading range up to 5 cm
  • 12V+-10% power supply, compact dimensions 125×55×21 mm

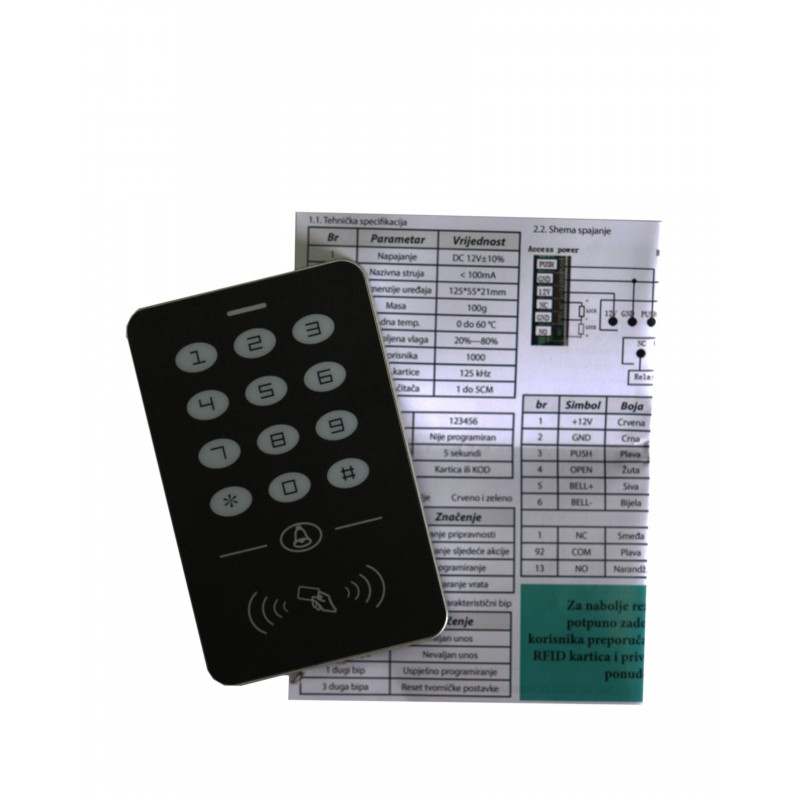

Installation and connection examples (power, wiring and mounting) are described in the manual included with the product. Manufacturer is not specified on the product page; technical parameters were verified on regional reseller listings.
