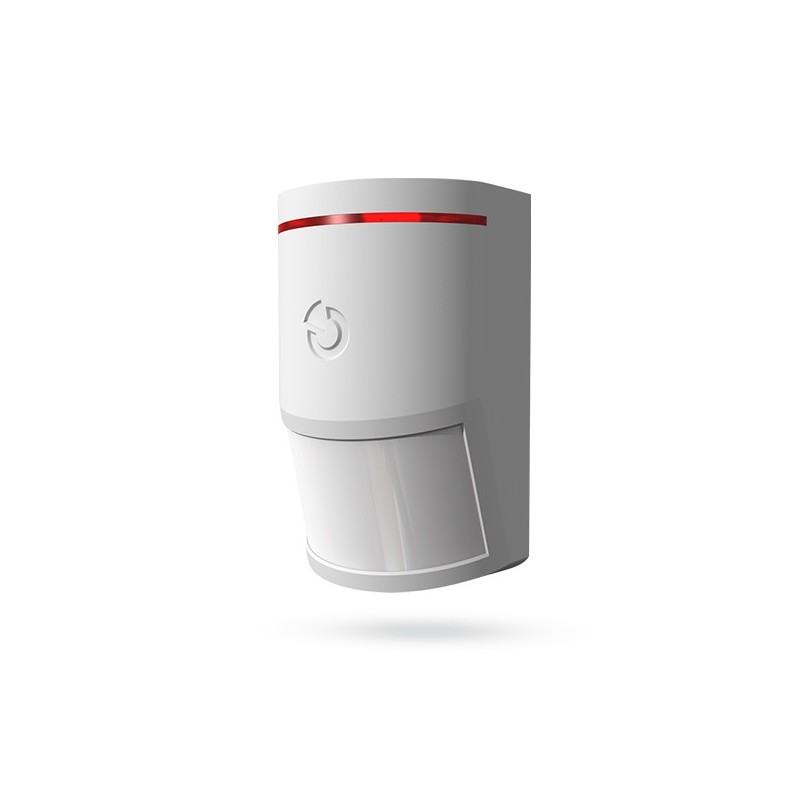

Motion detector JA-15P
Wireless motion detector for JA-10 systems - JA-15P
More info
It detects object movement having a human body temperature. The detection characteristic may be optimised by using the alternative lenses.
- Alternative lenses: JS-7904 Coridor lens, JS-7910 Pet immune lens, JS-7902 Curtain lens.
- The immunity level is selectable to two levels.
- It is powered by two alkaline batteries.
- Smartwatch function implemented for enhanced alarm reporting and battery life saving. It is addressable and occupies one position in the alarm.
Download
Accessories
-
Reference: JS-7904
Brand: JABLOTRON ALARMS S.A.
Corridor lens JS-7904
Replacement corridor lens for Jablotron JA/JS PIR detectors. Creates a narrow detection beam for long hallways with an effective range of approx. 25 m length × 3 m width; recommended mounting height 2.5 m.
-
Reference: JS-7910
Brand: JABLOTRON ALARMS S.A.
Pet lens JS-7910
JS-7910 is an alternative "pet" lens for PIR detectors that reduces false alarms caused by pets. It prevents detection of animals up to approximately 40 cm in height and reduces the detector's effective range to about 7 m. Field testing with your pet is recommended after installation.
-
Reference: JS-7902
Brand: JABLOTRON ALARMS S.A.
Curtain lens JS-7902
The JS-7902 is a replacement curtain lens for PIR motion detectors. It narrows detection to a vertical curtain—suitable for doors, windows and very narrow passages. Typical range at 2.5 m mounting height is up to 10 m.
1 other product in the same category:
-
Reference: JA-15PC
Manufacturer: JABLOTRON ALARMS S.A.
JA-15PC motion detector with camera
Wireless motion detector with camera JA-15PC
