> JA-156E-GR Wireless touchscreen keypad with reader RFID - grey

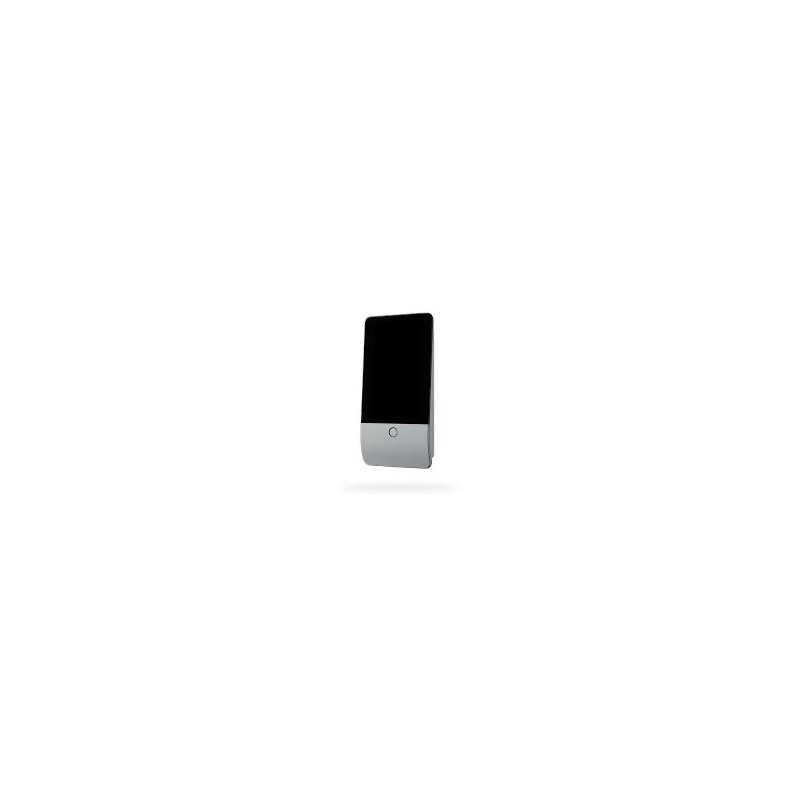

JA-156E-GR Bežična tipkovnica s ekranom osjetljivim na dodir i RFID čitačem - siva View larger

JA-156E-GR Wireless touchscreen keypad with reader RFID - grey

JA-156E-GR

New product

JABLOTRON ALARMS S.A.

The JA-156E-GR is a wireless touchscreen keypad (NATUS line) with an integrated 125 kHz RFID reader for Jablotron 100+ systems. Powered by a +12 V DC adapter; backup Li‑Ion battery (recommended BAT-3V7-2500) is not included. Installation must be performed by a certified Jablotron technician.

More details

More info

Overview and application

JA-156E-GR is a wireless touchscreen keypad with an integrated RFID reader designed for user control of JABLOTRON 100+ alarm systems. It is intended for indoor wall mounting and operation via the capacitive display. The unit is part of the NATUS product line and is available in grey (GR).

Compatibility and installation: The keypad is compatible with control panels JA-102K, JA-103K, JA-107K and JA-152KRY. To comply with EN 50131 and ensure correct installation, the power supply should be fitted in the supplied KU68 mounting box under the keypad. Commissioning must be carried out by a trained technician holding a valid Jablotron certificate.

Power and backup battery: Primary power is provided from an external adapter +12 V DC (8–15 V). A Li‑Ion polymer backup battery 3.7 V/2500 mAh (recommended BAT-3V7-2500) is used for standby power; battery is not included. Typical backup operation exceeds 48 hours; charging to 80% takes approximately 6–7 hours.

Wireless communication and RFID: Radio communication uses 868.1 MHz (JABLOTRON protocol), ERP <25 mW, with an approximate range of 200 m in open space. The built-in RFID operates at 125 kHz (EM/Unique formats as per manufacturer data).

  • Control device type (ACE): type B
  • Dimensions: 95 x 183 x 30 mm; weight: 258 g (without battery)
  • Current consumption: 58 mA (display OFF), 280 mA (display ON)
  • Operating temperature: 0 °C to +40 °C; humidity up to 75 % RH (non‑condensing)
  • Recommended mounting screw: 4 x ø 3.5 x 40 mm (countersunk head)

Approvals and conformity: The device is rated Security Grade 2 / Environmental Class I and meets relevant ETSI/EN standards. It is intended for professional installation in residential and commercial premises within the specified environmental limits.
