> JA-191T Dual RFID USB Reader

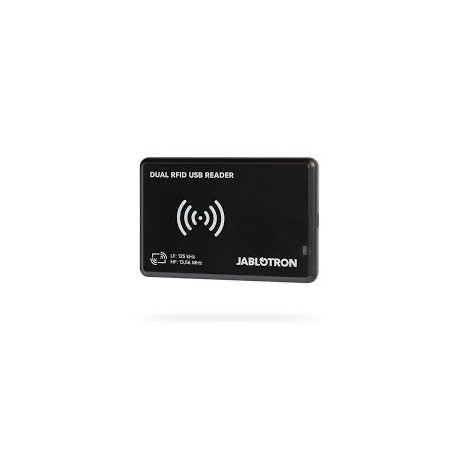

JA-191T dvostruki RFID USB čitač View larger

JA-191T Dual RFID USB Reader

JA-191T

New product

JABLOTRON ALARMS S.A.

The JA-191T Dual RFID USB Reader simplifies management of access RFID cards and key fobs for JABLOTRON JA-100/JA-100+ systems. It supports 125 kHz (EM MARIN) and 13.56 MHz (MIFARE), is USB‑powered and gives optical and audible read confirmation.

More details

More info

JA-191T — Dual RFID USB Desktop Reader

The JA-191T provides reliable, convenient handling of access RFID media (cards, key fobs) for JABLOTRON JA-100 and JA-100+ alarm systems. The reader supports both low frequency (LF) 125 kHz (EM MARIN) and high frequency (HF) 13.56 MHz (MIFARE) operation; the factory default is the dual (both) mode.

Powered from a USB port (5 V DC), the reader has a typical current consumption of 68 mA, peak consumption of 118 mA, and maximum power of 0.59 W. Typical reading range for ISO cards is up to 5 cm for both frequencies. Scans are indicated by a red/green LED and a piezo speaker.

Operation mode (LF only, HF only, or LF+HF) is set using the supplied configuration cards by touching the card to the reader. The package contains the JA-191T reader, a 1.8 m USB A to mini-B cable and three configuration cards for selecting read modes.

The device is recognized by Windows 10 and 11 as a composite USB device and typically requires no special driver. For enrollment, use the management software (e.g., F-Link): open the Users menu, select the Card field and touch the RFID media to the reader — the ID will be entered automatically.

Key features

  • Dual-frequency operation: 125 kHz (EM MARIN) and 13.56 MHz (MIFARE)
  • USB-powered (5 V DC), typical consumption 68 mA
  • Reading range up to 5 cm (ISO card)
  • LED and piezo feedback; includes 3 configuration cards and 1.8 m USB cable
  • Compatible with JABLOTRON JA-100 / JA-100+
