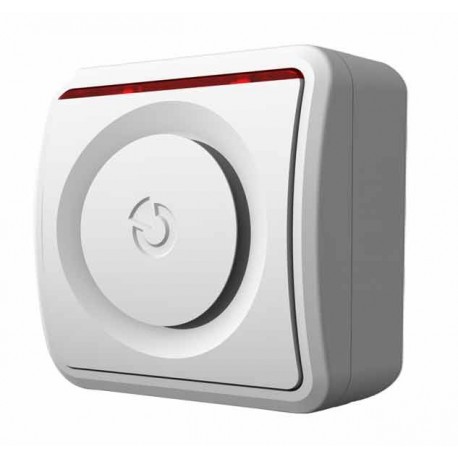

JAB Sirena unutarnja, BUS sa baterijom, JA-110A II View larger

Internal BUS siren JA-110A II

JA-110A II

New product

JABLOTRON ALARMS S.A.

The Jablotron JA-110A II is an internal BUS siren with an optional LiFePO4 CR2 backup battery. It provides audible alarm signalling, status indication, entry/exit delay tones and activation of programmable outputs in JABLOTRON 100+ systems.

More details

Data sheet

Connection method BUS

More info

JA-110A II — BUS internal siren

The JA-110A II is a BUS‑connected indoor siren designed for use within JABLOTRON 100+ alarm systems. It sounds alarm tones, indicates system status, notifies entry and exit delays and can trigger programmable outputs (PG) as configured via the control panel software.

Main features: optional LiFePO4 CR2 3.2 V (0.4 Ah) backup battery, built‑in piezo sounder rated at 100 dB/m (±5 dB), tamper switch and a front button that can silence the alarm or be set for panic activation. Button behaviour is configurable in system software.

The device is powered from the control panel BUS (nominal 12 V DC). Respect the documented maximum current consumption (up to 120 mA) when selecting wiring and, if required, fit the recommended backup battery to ensure 24‑hour or autonomous operation.

Technical summary:

  • Power: from control panel BUS, nominal 12 V DC (see official documentation for range).
  • Optional backup battery: 3.2 V LiFePO4 CR2, 0.4 Ah (battery not supplied).
  • Quiescent current: ≈5 mA; max current: 120 mA; LowBatt threshold: 2.9 V.
  • Sounder: piezo‑electric, 100 dB/m (±5 dB).
  • Dimensions: 80 × 80 × 35 mm; weight: 92 g.
  • Security classification: Security grade 2 / Environmental class II (EN 50131‑1).
  • Operating temperature: -10 °C to +40 °C; humidity up to 75 % RH without condensation.

Installation and configuration must be carried out by an authorized installer following the manufacturer instructions. The JA-110A II provides reliable indoor acoustic signalling and basic status reporting for JABLOTRON alarm installations.

Download

JA-110A II Tehnička speceifikaci

Download (143.89k)

Uputa proizvođača JA-110A II

Download (493.5k)
