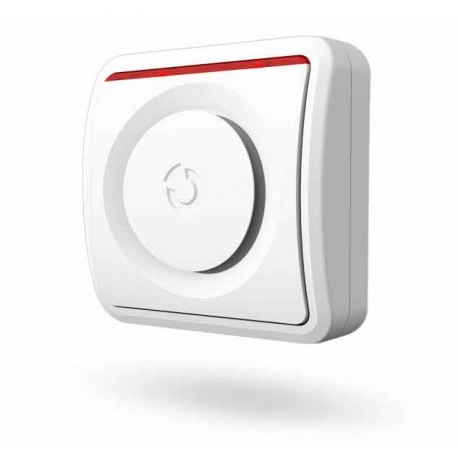

Internal siren for JA-110A alarm system View larger
Previous Next

Jablotron JA-110A Internal BUS Siren

JA-110A

New product

JABLOTRON ALARMS S.A.

The JA-110A is an addressable internal BUS siren for the JABLOTRON 100+ system. It provides audible alarm signalling, entry/exit delay melodies and status indication. Features a programmable pushbutton for silence/confirmation, front and rear tamper and is BUS‑powered (9–15 V).

More details

Data sheet

Connection method BUS
Mjesto ugradnje Unutarnja ugradnja

More info

JA-110A Internal BUS Siren

The JA-110A is an addressable indoor BUS siren intended for integration into the JABLOTRON 100+ alarm system. It is used for audible notification of alarms, differentiation of alarm types, signalling of entry and exit delays, status signalling and activation of programmable outputs.

Key features include a piezo sounder rated at 85 dB/m, a programmable pushbutton that can silence an ongoing alarm or act as confirmation/panic input, front and rear tamper contacts, and occupation of one BUS address in the system. The device communicates with and is powered directly from the control panel via the BUS.

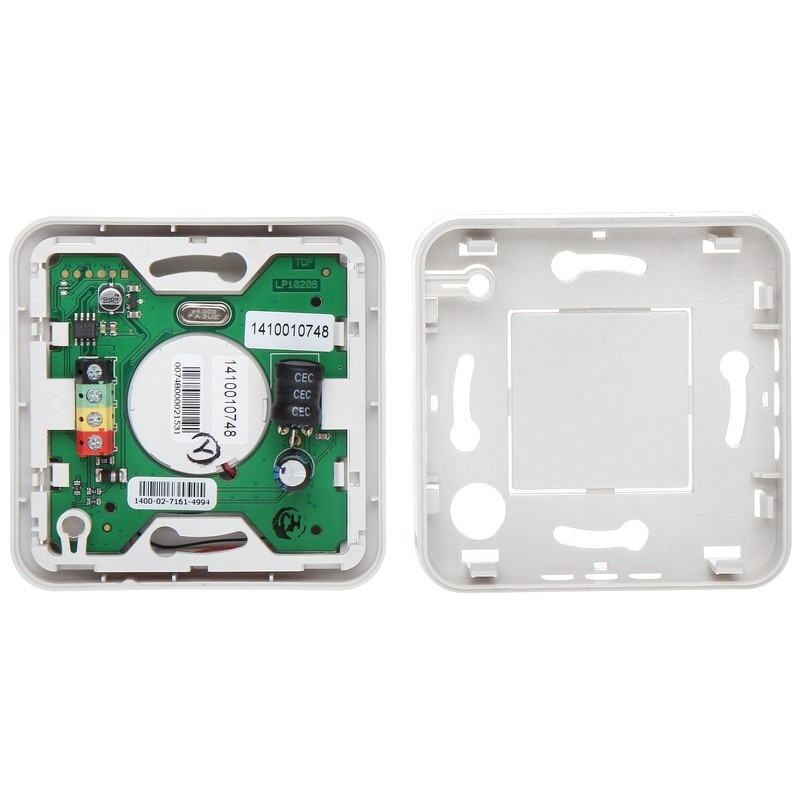

The siren includes a connector for an optional backup battery (BAT-3V2-CR2) recommended when the BUS cable run exceeds 100 m to compensate for voltage drop. Enrolment to the control panel is performed by an authorised installer using F-Link software or by pressing the siren button.

Installation and compatibility

Mounting is on an internal wall or in a suitable enclosure. Tamper switches must be positioned correctly relative to the base magnets. The JA-110A is compatible with JABLOTRON 100+ control panels (e.g. JA-101K, JA-102K, JA-103K, JA-106K, JA-107K).

Technical specifications

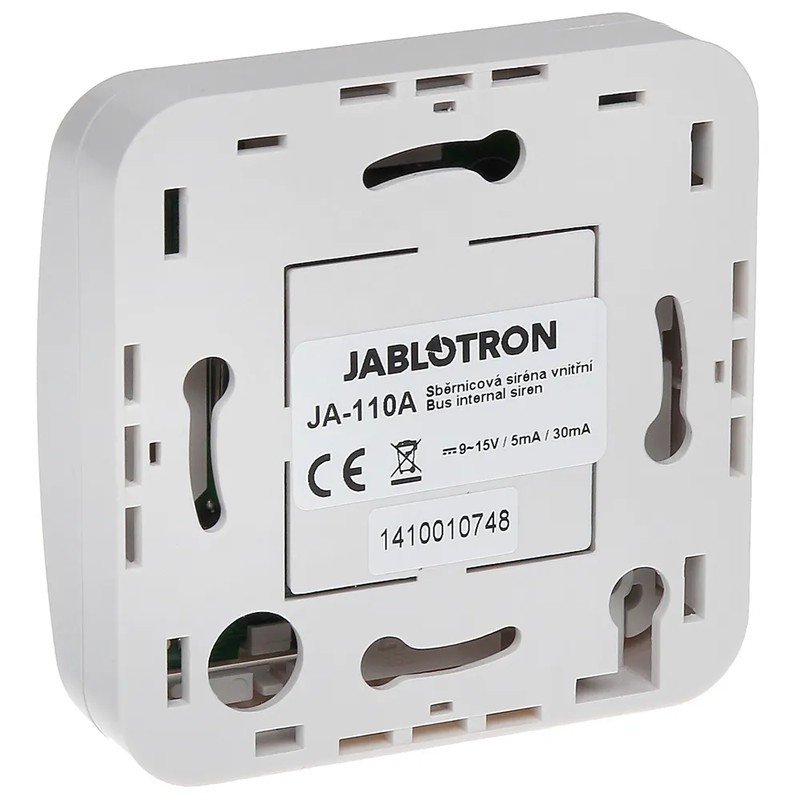

  • Power supply: from BUS 12 V DC (9…15 V)
  • Quiescent current: 5 mA
  • Max. current consumption: 30 mA
  • Siren: piezo-electric, 85 dB/m
  • Type: indoor, type X
  • Dimensions: 80 × 80 × 28 mm
  • Occupies: 1 address position on the BUS

This description is based on the manufacturer's technical documentation. Installation and commissioning must be carried out by a certified technician and in accordance with the product manual.

Download

Europski certifikat JA-110A

Download (1.53M)

Dekl. o sukladnosti JA-110A

Download (170.61k)

Tehnička specifikacija JA-110A

Download (151.4k)

Uputa proizvođača JA-110A

Download (616.35k)
