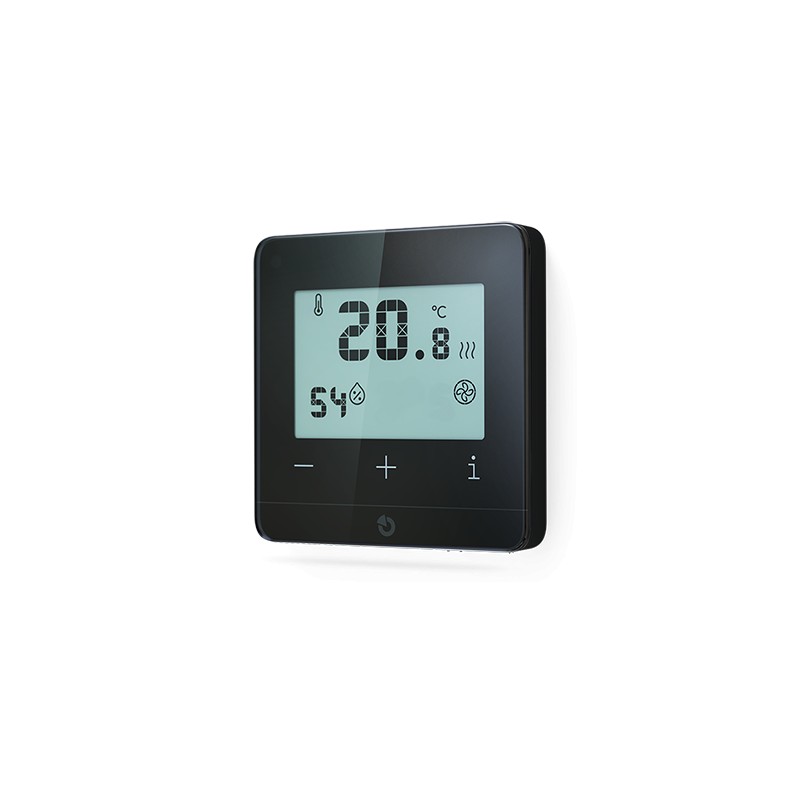

JAB Wireless Thermostat JB-151TP-AN Anthracite

Product overview

The JAB wireless thermostat JB-151TP-AN provides accurate indoor temperature and humidity measurement and zonal control for heating, cooling and ventilation within the JABLOTRON 100+ ecosystem. It also supports an external floor sensor for floor temperature monitoring with limit protection.

Integration and control: The thermostat connects to the JABLOTRON platform and the MyJABLOTRON 2 app, enabling remote scheduling, temperature and humidity graphs and energy-saving automation linked to alarm events. Some cloud-based functions require device registration in the JABLOTRON Cloud.

Key functions:

• Independent switching of heating, cooling and ventilation (seasonal mode selection).
• Support for an external floor sensor with a floor temperature limit function.
• Zone control in combination with JABLOTRON 100+ control units.
• Local control via display and buttons plus advanced configuration through the app.

Installation and safety: The thermostat is designed for mounting on a standard 82×82 mm back box. Communication uses 868.1 MHz Jablotron protocol with up to 500 m open-field range (ERP <25 mW). The product is intended for installation by a certified Jablotron technician to ensure correct integration and full functionality.

Compatibility and replacement: JB-151TP-AN is compatible with modules JA-103K and JA-107K and replaces the earlier JA-150TP, offering improved comfort and energy management when combined with the alarm system.

Selected technical data:

• Dimensions: 82 × 82 × 22 mm; weight: 99.7 g (without batteries).
• Standby current: ≈110 µA; max current: ≈100 mA; low battery detection: 2.2 V.
• Radio: 868.1 MHz, range up to 500 m (open space), ERP <25 mW; IP31.
