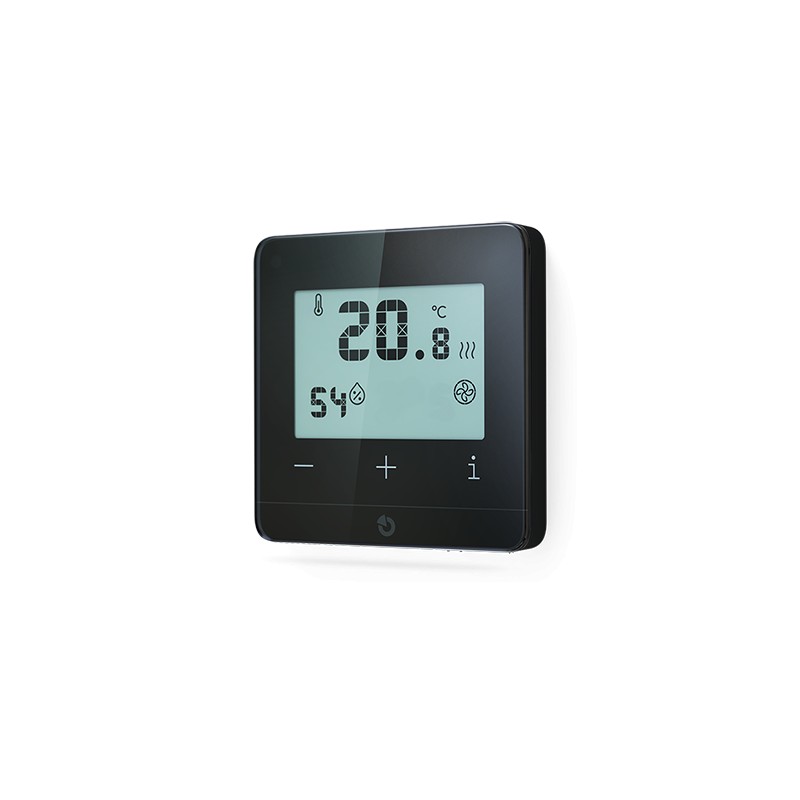

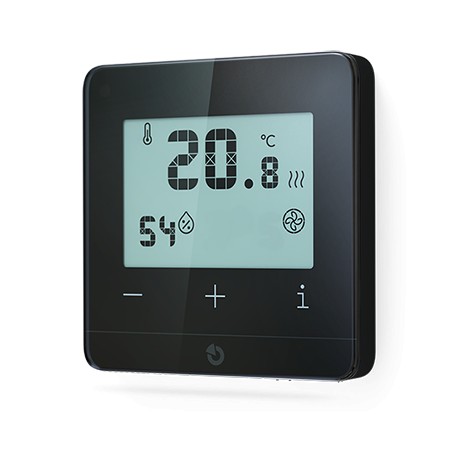

JAB Thermostat JB-111TP-AN — anthracite

JB-111TP-AN is a bus room thermostat designed for zonal control of temperature and humidity within the JABLOTRON 100+ system. In combination with the control panel it enables automatic switching of heating, cooling or ventilation and can respond to system events (e.g. away mode, open window) to reduce energy consumption.

The device measures air temperature and relative humidity and—when connected to the external NTC floor sensor JB-TS-NTC10K (sold separately)—supports floor temperature limiting. Measurement values and control commands are exchanged digitally over the system bus; actual switching of appliances is performed by the panel’s PG outputs.

Key technical parameters: bus power 12 V DC (10…15 V), nominal consumption 5.5 mA, peak current up to 30 mA. Front module dimensions are 82 × 82 × 11/22 mm (depending on mounting), protection rating IP31, weight approximately 101.1 g. Operating range is −10 °C to +50 °C with non‑condensing humidity limits.

The JB-111TP-AN replaces the older JA-110TP and is compatible with JABLOTRON 100+ panels (e.g. JA-103K, JA-107K). Convenient temperature scheduling, graphs and historical values are available in the MyJABLOTRON 2 app; full feature set requires system registration in the JABLOTRON Cloud.

Installation and final configuration must be carried out by a certified installer. A separate surface-mount backplate (PLV-JB11XTX-AN) is available where surface mounting is required.

• Addressable bus thermostat for JABLOTRON 100+
• Temperature and humidity measurement; optional JB-TS-NTC10K floor sensor
• Controls heating, cooling and ventilation via panel PG outputs
• Compact 82×82×11/22 mm design, IP31, anthracite finish
