> >>Elektro prihvatnik STR41-2NF512 12DC, MK, MINI, BSO
Sale! Elektro prihvatnik STR41-2NF512 12DC, MK, MINI, BSO View larger
Previous Next

Elektro prihvatnik STR41-2NF512 12DC, MK, MINI, BSO

STR41-2NF512

New product

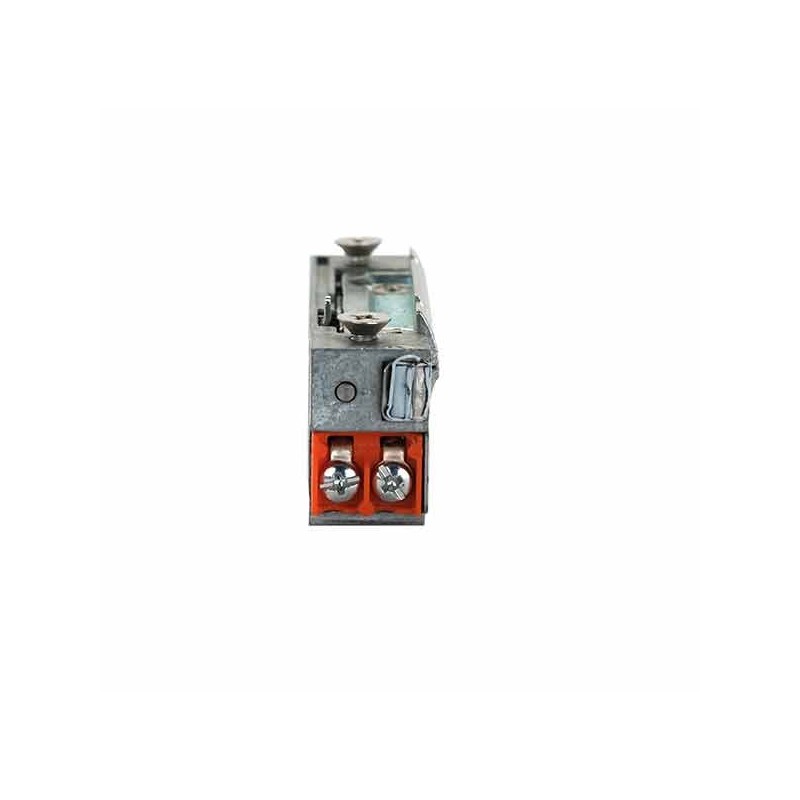

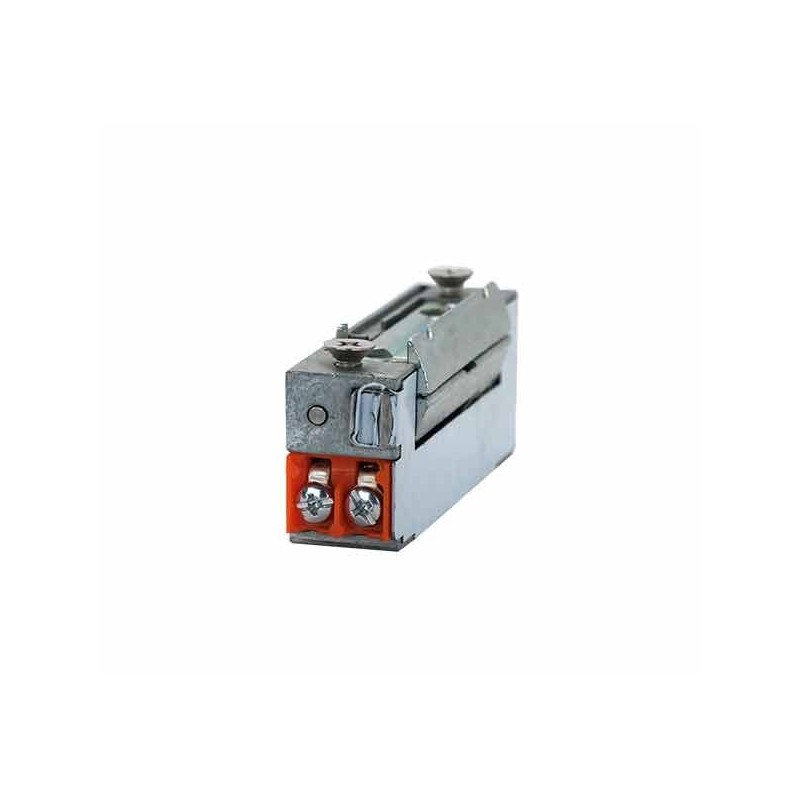

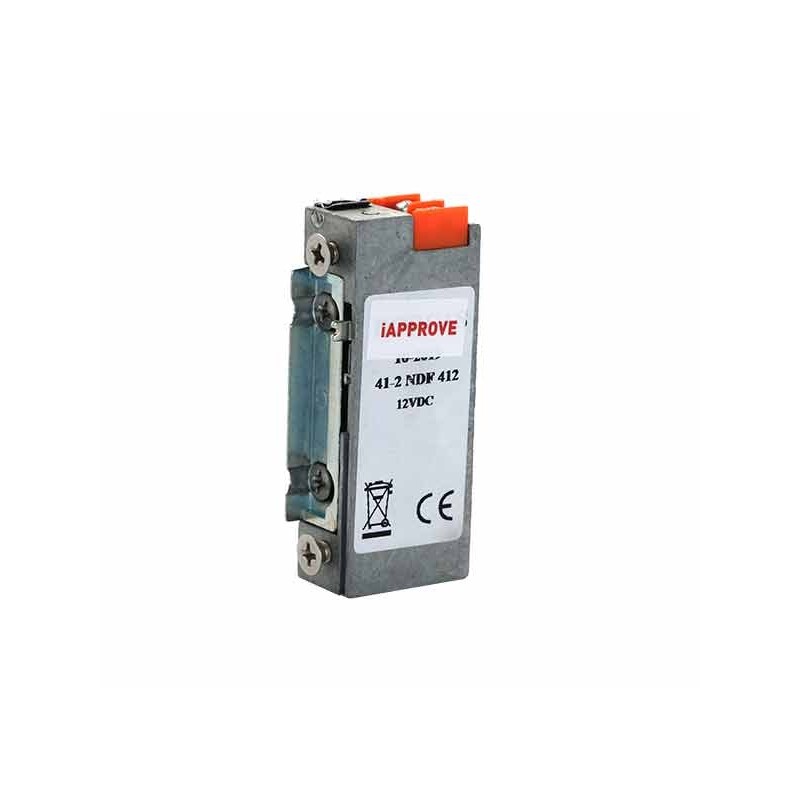

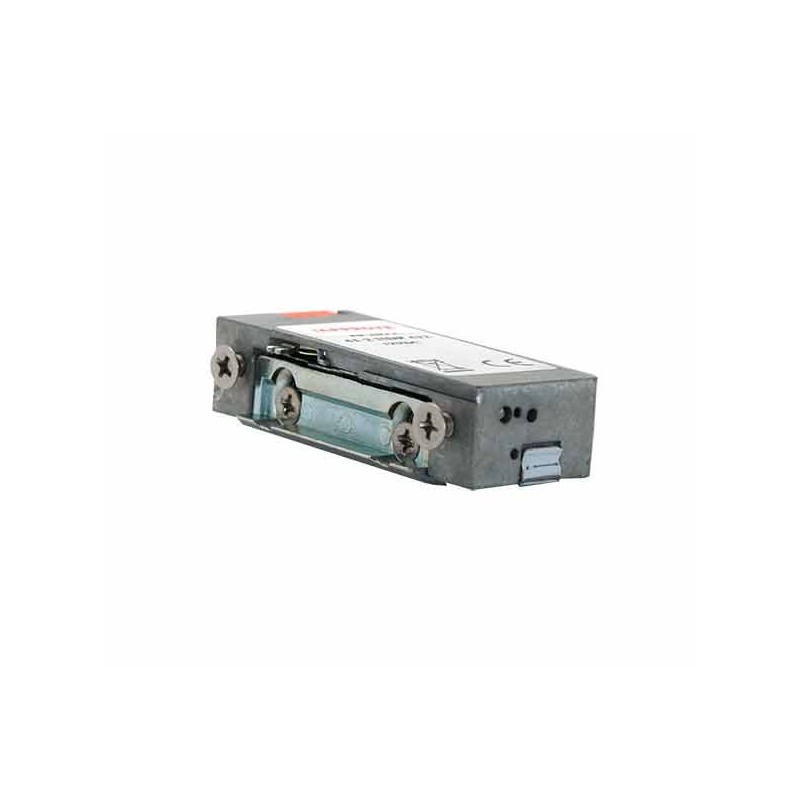

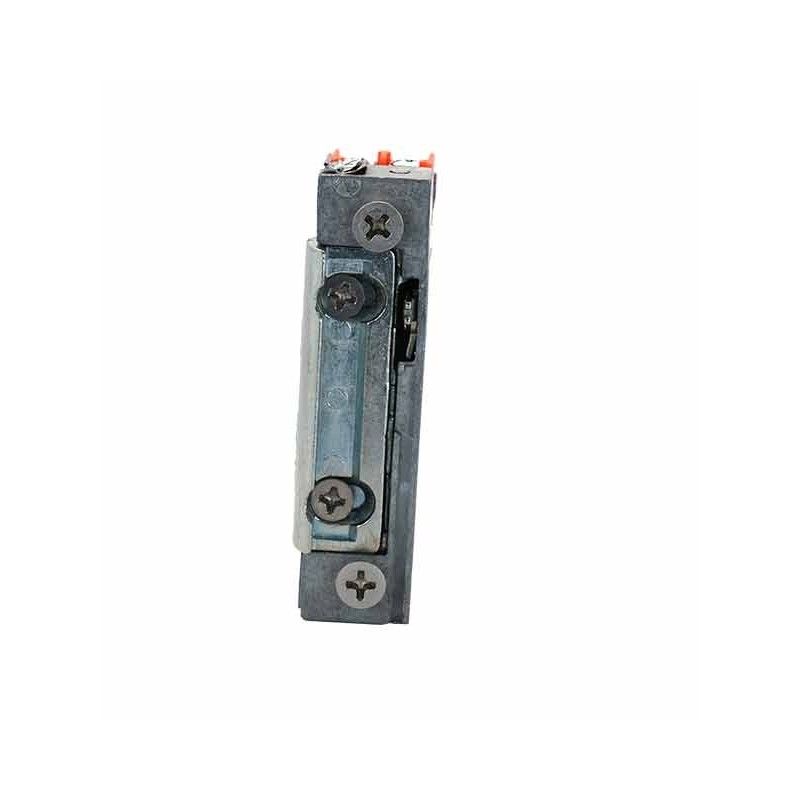

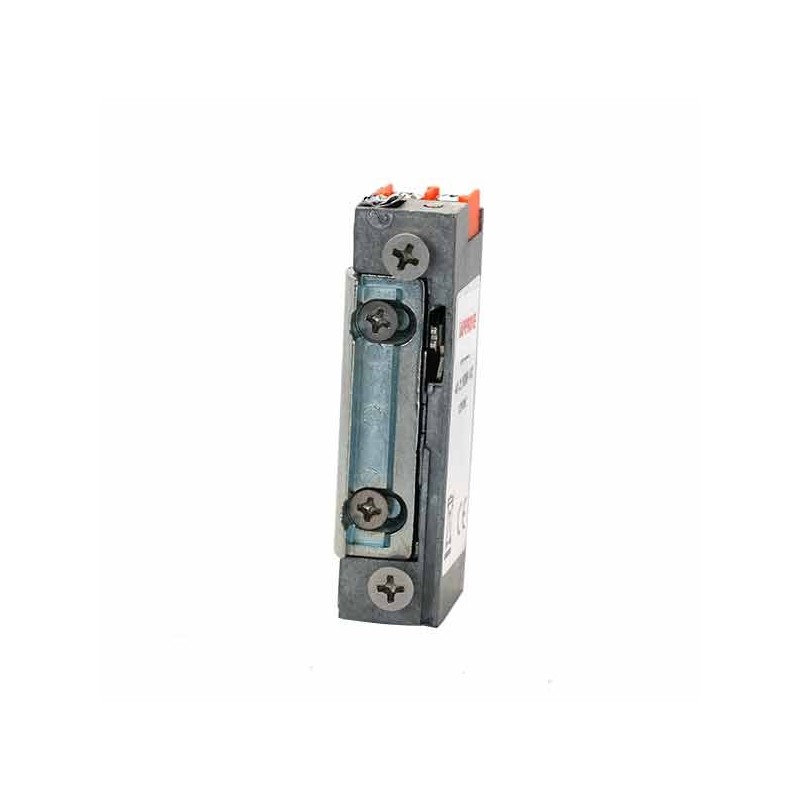

Mini electrical receiver, Symmetric series, suitable for both left and right doors. Housing made of stainless steel. Open without electricity. This model is particularly suitable for access control where fire lists must be strictly enforced.

More details

More info

Operating voltage 8-15V, typically 12V. Adjustable locking element and the possibility of adjusting the same +- 1 mm. Lifetime 300,000 cycles.

Typical application: suitable for installation in ALU and PVC joinery, but also often used for mechanical and wooden doors.

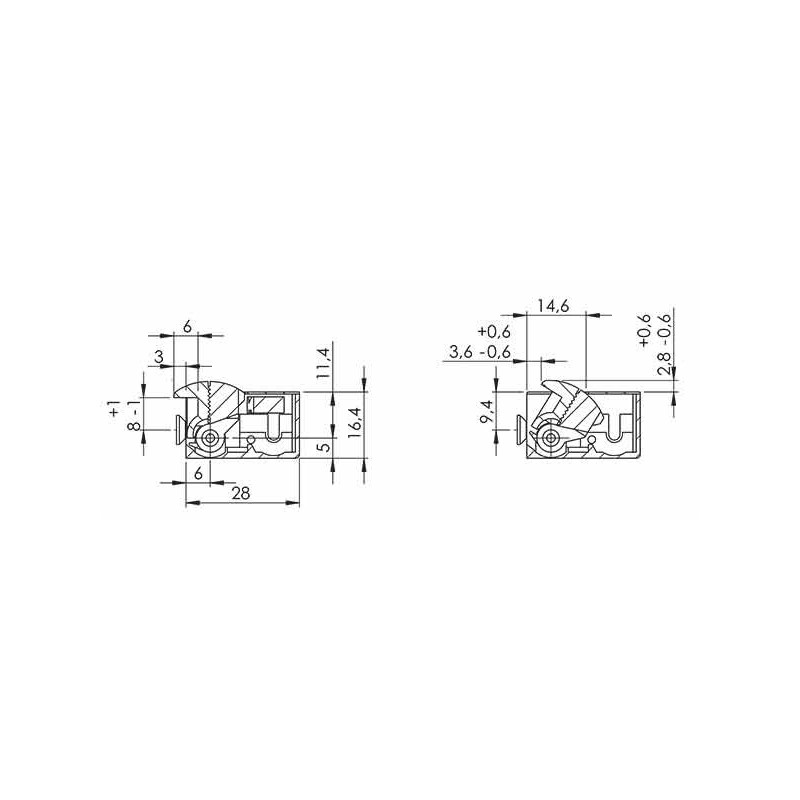

Depth of the locking element: 5.7 mm

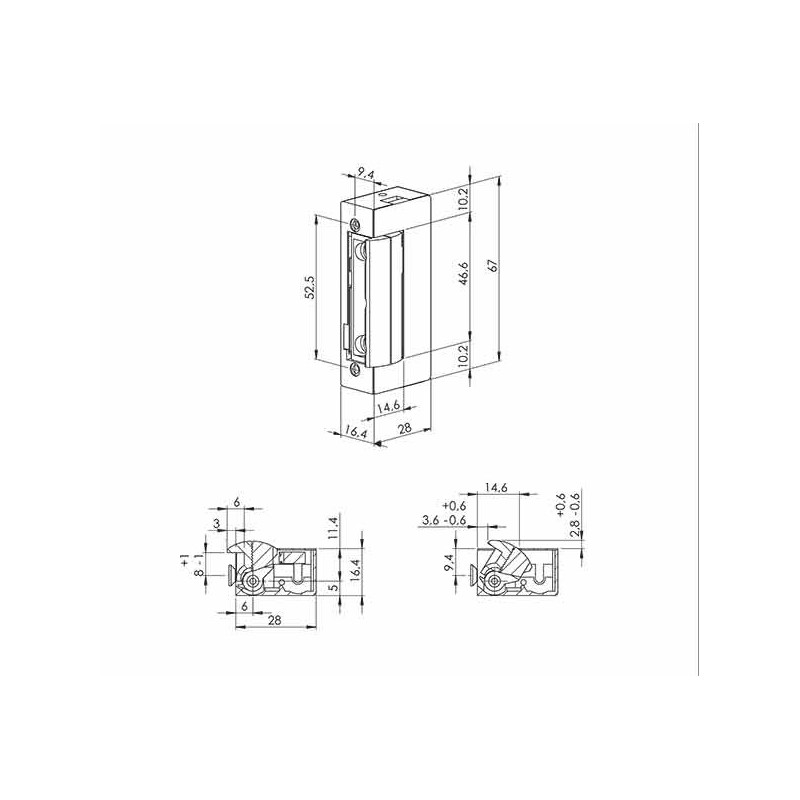

Dimensions: 16.4*28*67 mm
Breaking force: 3000 N
Coil resistance 45R-typ
Working temp. : -15 to +45
Rated current: 200mA-400mA
