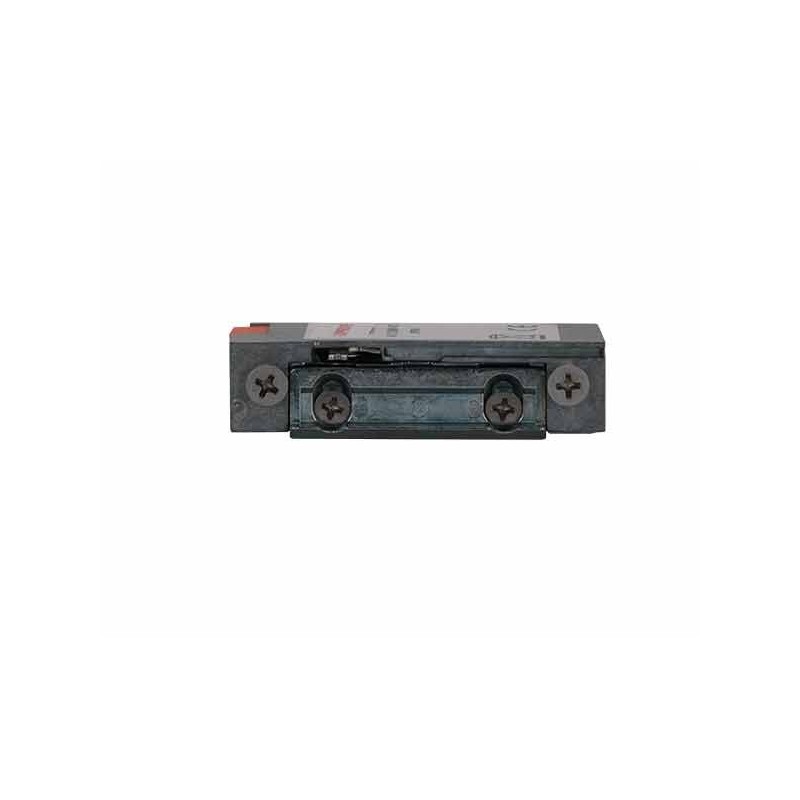

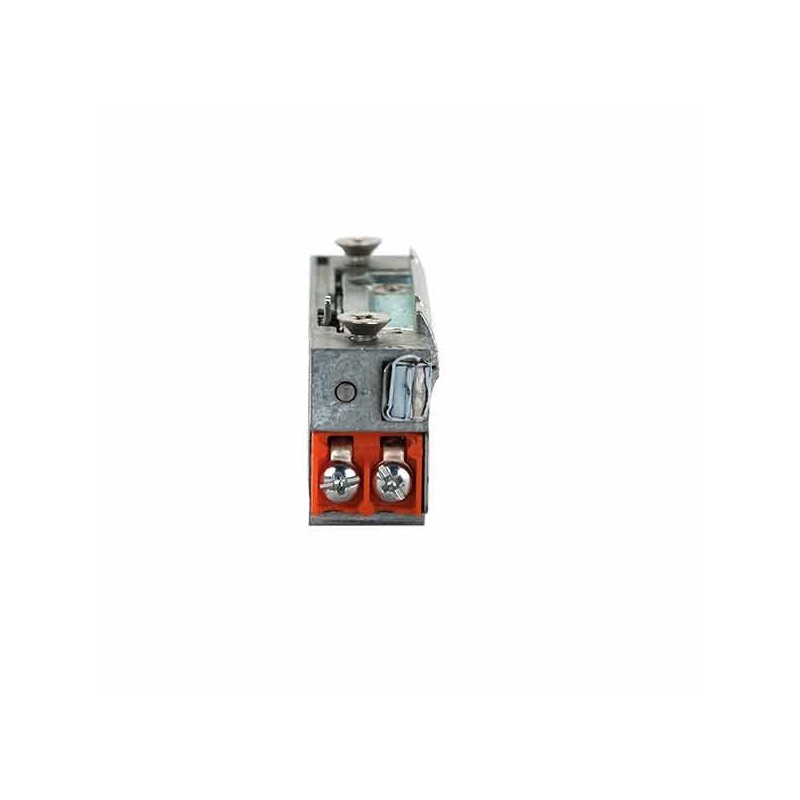

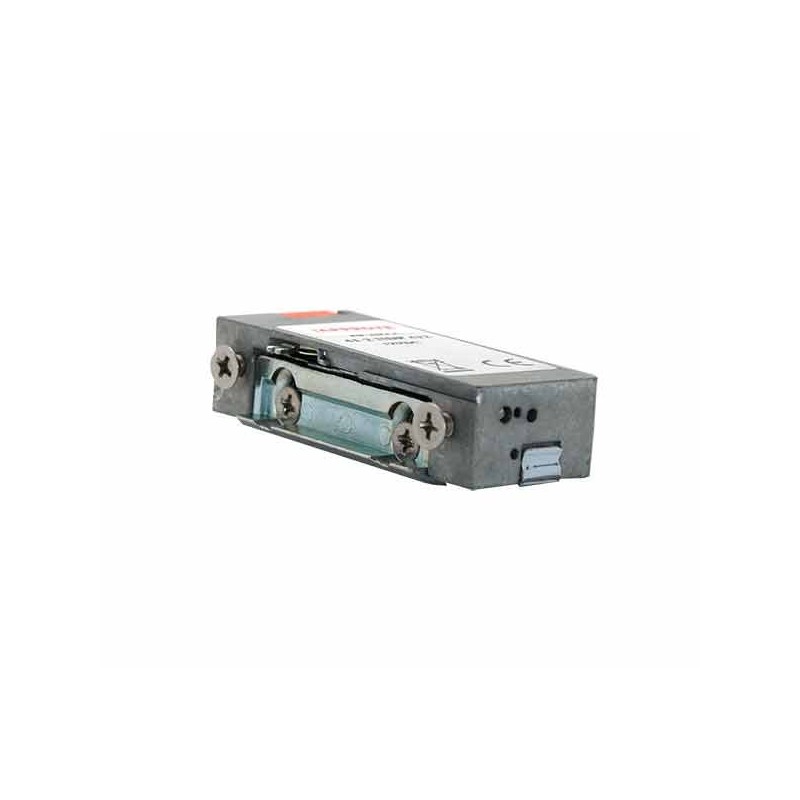

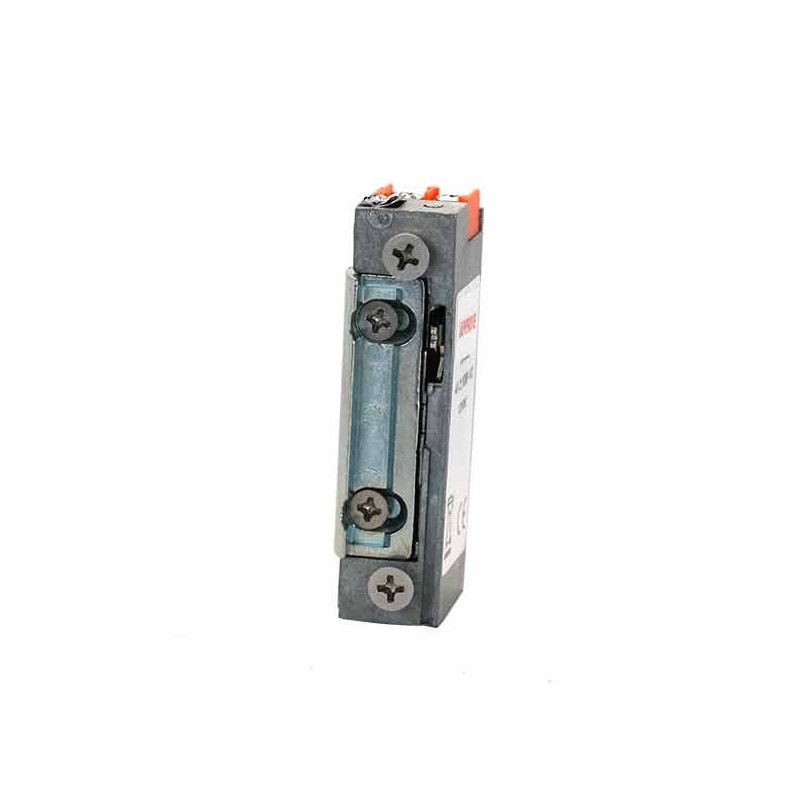

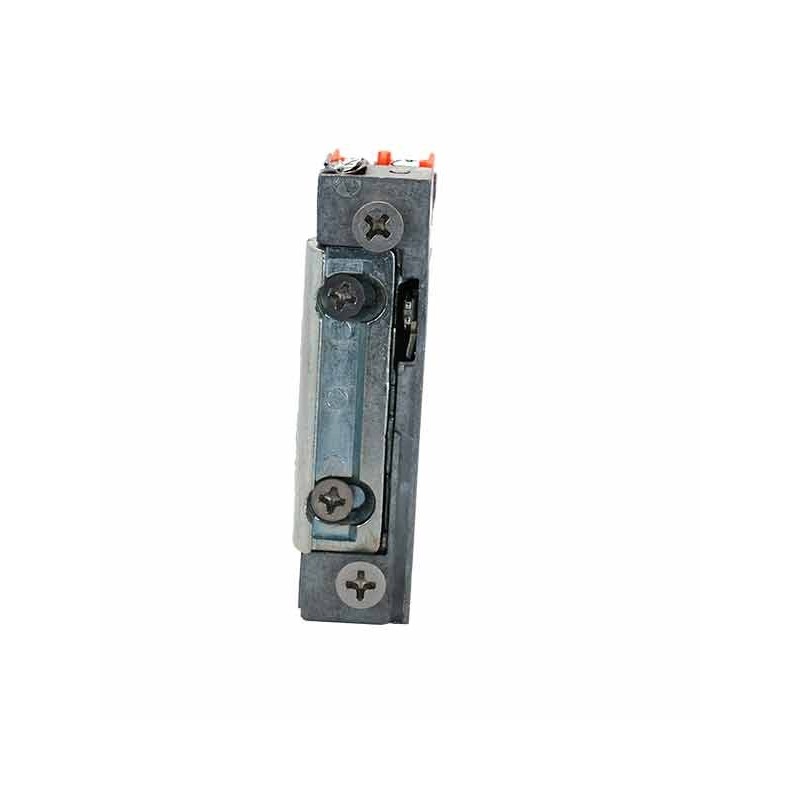

Electric strike, small, 12VDCSTR41NF512

STR41NF512

New product

Electric door lock of very small dimensions. Simple electric receiver for general use. Installation in the jamb (stock). Power supply with two conductors. No electricity = open.

More details

More info

Narrow electric strike that is always open without opening

Specific radial electric strike (electric lock) for all types of profiles and doors such as aluminum and PVC doors thanks to the small and thin mechanismand small housing dimensions (16.4 mm wide)

Basic characteristics of STR41NF512:

Rated voltage: 12 VDC
Rated current: 200 mA

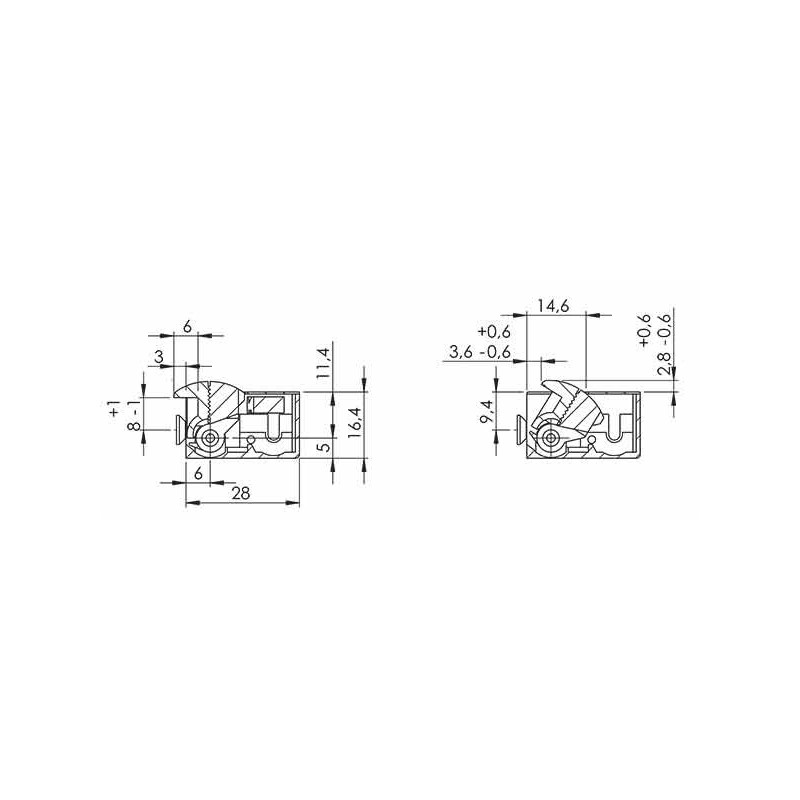

Possibility to adjust the locking element + 1mm to -1mm
Locking element depth 6mm
Mechanical release (there is a release lever on the body of the electric receiver):No power open

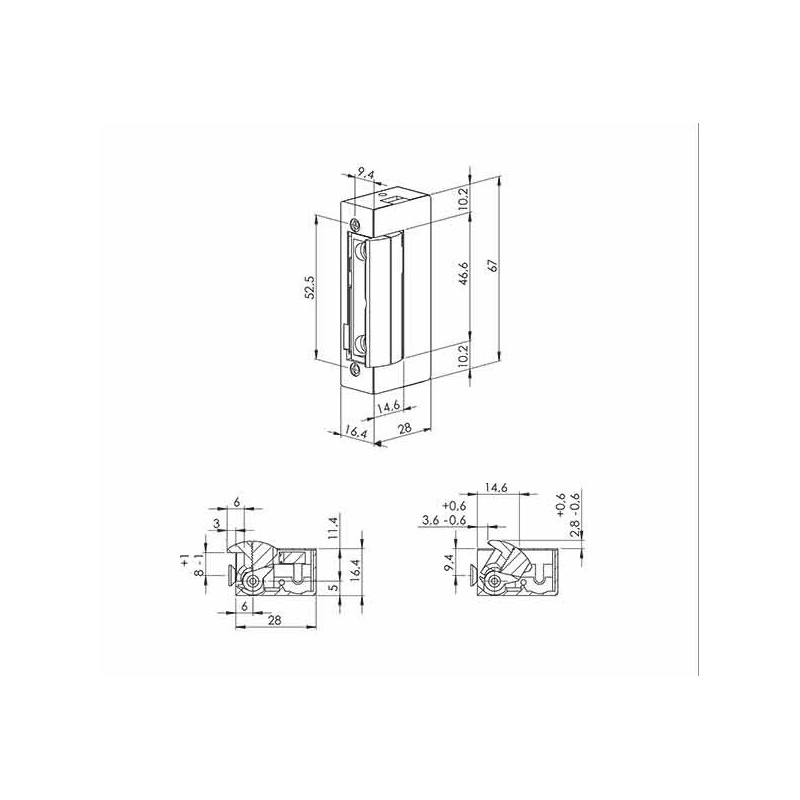

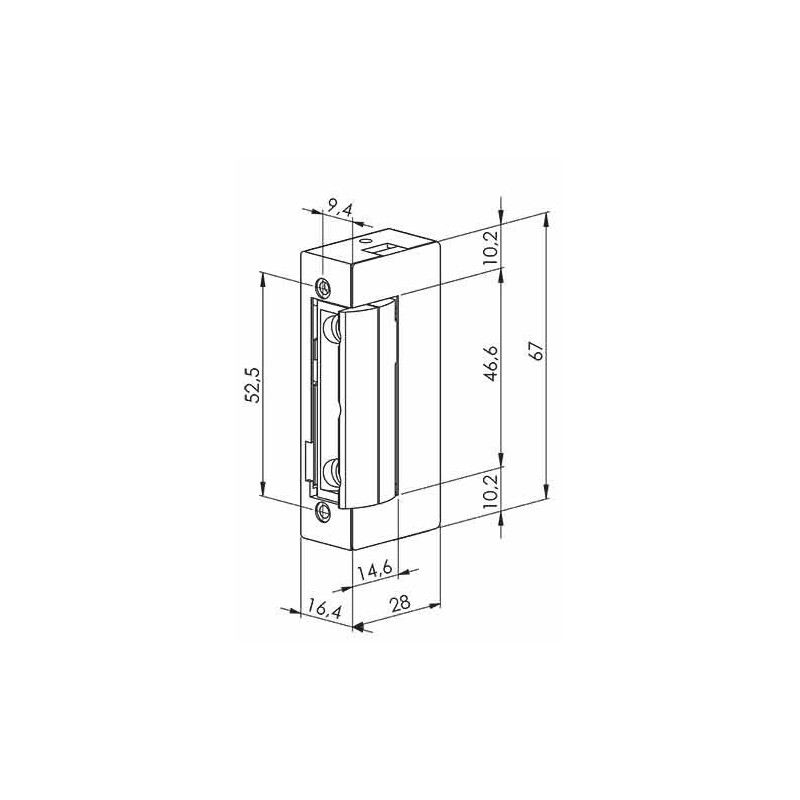

Dimensions: W: 16.4 X D: 28 X H: 67 mm
Lifespan 300,000 cycles
Breaking force: 3000N
Operating temperature: -15 to + 45


Generally about electric receivers
Electric strike are the executive elements of any access control system, including the intercom and video intercom systems. The electric drive is built into the door jamb (stock) and allows the door to be opened from a remote location (eg from an apartment or office).Electric strikes are used in places where it is necessary to automate and control the entrance to the facility through an access control system, which includes intercom and video intercom systems. The installation of the electric strike means that the door does not have a handle on the side from which we want to control the passage.


We offer several types of electrical strikes that differ in basic characteristics and purpose:
Fail secure power supplies: closed without power
Fail safe power supplies: open without power supply
With mechanical brake: possibility of manual switching on and off
Without mechanical brake: the electric receiver always works

For installations where door control cannot be applied using an electric receiver, we offer various types of electric locks, electromagnets and the like.
Please note:When ordering new carpentry, look for the installation of an electric strike already during production.When installing the system with an electric strike , it is obligatory to supply it in a special circuit.
