> >>>>Magnetic detector (NC) SA-201-A
SA-201-A View larger

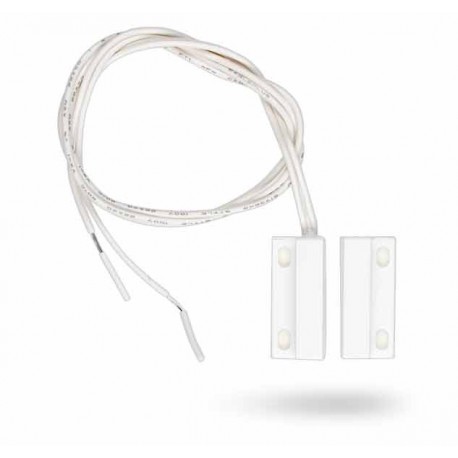

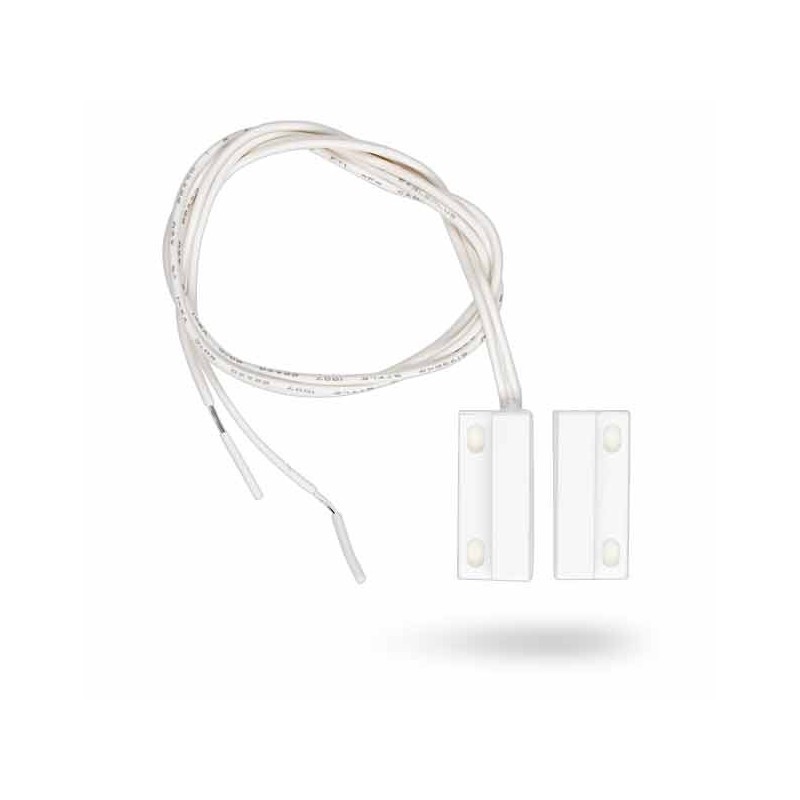

Magnetic detector (NC) SA-201-A

SA-201-A

New product

JABLOTRON ALARMS S.A.

Miniature magnetic contact (NC) for door and window protection. Surface-mount, 2-wire with lead for easy connection. Manufacturer: Jablotron, model SA-201-A, EAN 8594052535686.

More details

More info

Jablotron SA-201-A is a miniature magnetic door/window contact (NC) intended for perimeter protection. It is a compact surface-mount device supplied as a 2-wire contact with an attached cable, enabling straightforward installation on various frame types.

Typical use includes perimeter intrusion detection in alarm systems where a low-profile sensor is required. The NC (normally closed) configuration keeps the circuit closed while the sensor and magnet are together and opens when separated — a standard wiring scheme for alarm control panel inputs.

Installation notes: mount the contact on the door or window frame and position the magnet on the moving part. The unit can be fixed with screws or adhesive depending on the surface. Its small size and cable lead make it suitable for installations where recessed contacts are impractical.

Connection is made to a conventional wired detector input; verify the control panel’s expected input logic (NC/NO) and tamper/supervision requirements before wiring. Suitable for indoor residential and commercial systems requiring reliable, unobtrusive door/window detection.

Key features:

  • Type: magnetic contact, NC (normally closed)
  • Mounting: surface
  • Connectivity: 2-wire with lead
  • Manufacturer: Jablotron, model SA-201-A
  • EAN: 8594052535686

Download

Teh. specifikacija SA-201-A

Download (106.88k)
