> >>>Control panel JA-103K-7AH

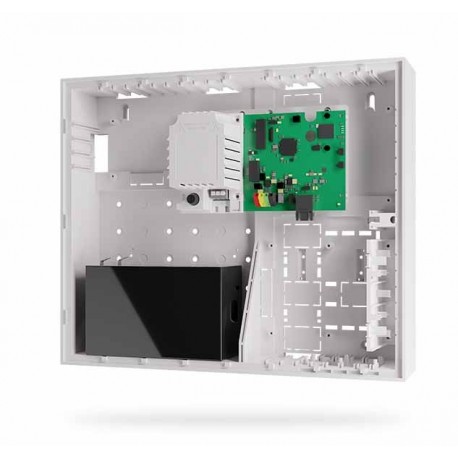

JAB Alarmna centrala sa LAN komunikatorom View larger

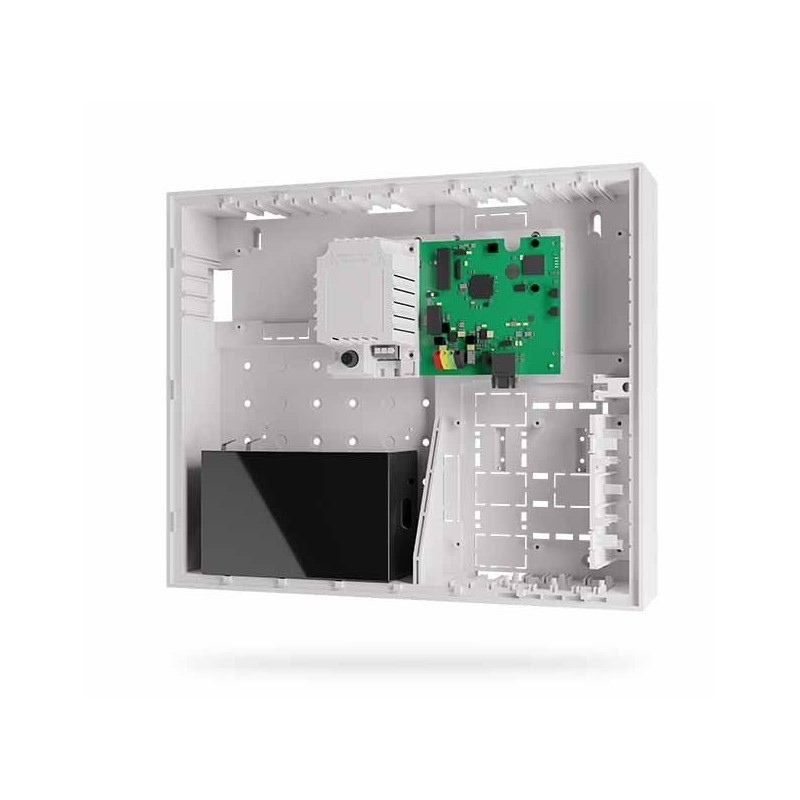

Control panel JA-103K-7AH

JA-103K-7AH

New product

JA-103K-7AH is a JABLOTRON 100+ control panel with LAN communicator in an enlarged housing for a 12 V / 7 Ah backup battery. Supports 50 devices, 50 users, 8 partitions and 32 programmable PG outputs; configured with F-Link.

More details

More info

Overview

The JA-103K-7AH is the control panel of the JABLOTRON 100+ family designed for homes, offices and small businesses. It features an enlarged enclosure with space for a 12 V / 7 Ah lead‑gel backup battery and a built‑in LAN interface for network connectivity and remote management.

Installation and configuration

The unit must be installed by a certified Jablotron technician. System programming, sizing and advanced configuration are performed using the F-Link software (from version 2.0.0), which provides access to device addressing, partitioning and calendar events.

Key features

  • Support for up to 50 wireless or BUS devices
  • Up to 50 users
  • 8 partitions (sections)
  • 32 programmable PG outputs
  • 20 independent calendar events
  • 8 user SMS and voice reports
  • Support for up to 5 ARCs and 5 selectable ARC protocols
  • BUS terminal board, connector for internal radio module JA-11xR and connector for GSM/GPRS communicator JA-192Y
  • MiniUSB, microSD slot, LAN (Ethernet 10/100) and status LEDs

Compatibility & notes

Certain products are not compatible with this control panel (e.g. JA-180A, JA-154J, JA-190X). Other devices require minimum firmware versions to be compatible (for example JA-112E, JA-113E, JA-118N). The panel includes tamper protection and ships with standard accessories listed in the installation manual.

Dimensions and power: enclosure 357 × 297 × 105 mm; backup battery 12 V, 7 Ah (lead‑gel).

Follow Jablotron installation and commissioning procedures and use authorized tools and software for setup.
