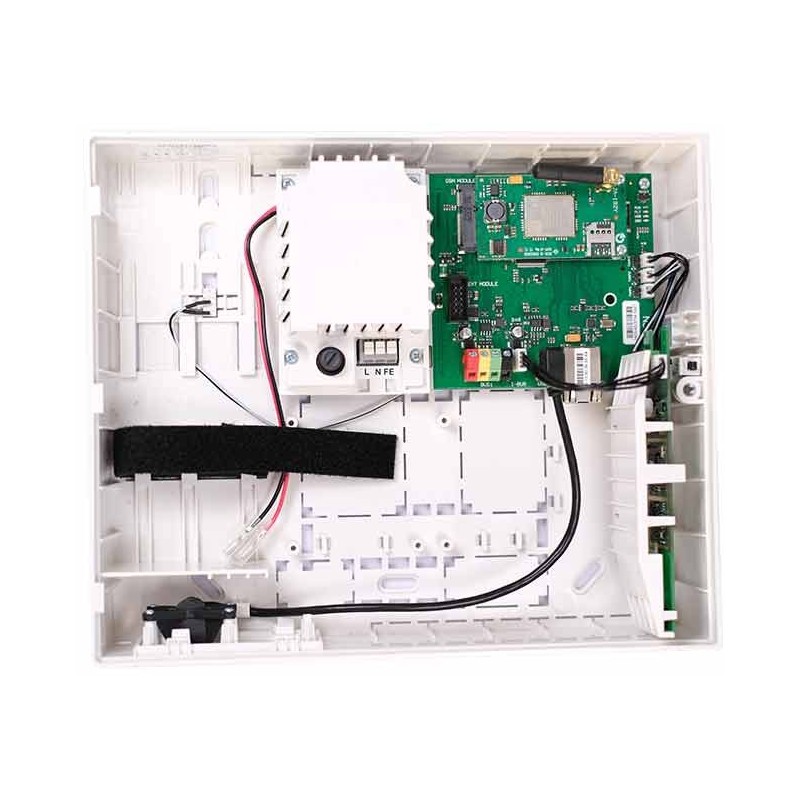

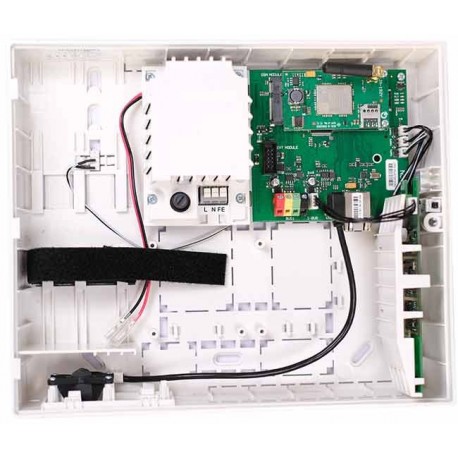

JA-103KRY
The JA-103KRY (Jablotron 100+) is a hybrid control panel with built-in LAN, GSM/GPRS communicator and radio module. It supports up to 50 wireless or bus devices, 50 users, 8 sections and 32 programmable PG outputs. Includes JA-111R radio and JA-192Y GSM module.
Data sheet
| Zones | 50 |
| Number of users | 50 |
| Sections | 8 |
| PG outputs | 32 |
| ARC | 5 |
| BUS connection terminal | 1 |
| LAN | YES |
| GSM/3G GPSR | YES/OPT |
| Radio modul | YES |
More info
Overview
JA-103KRY is a mid-size control panel from the JABLOTRON 100+ series combining LAN, mobile and radio communication for hybrid wired/wireless security installations. It is suitable for homes, apartments and small commercial premises where flexible expansion and multiple reporting channels are required.
Key specifications
- Support for 50 wireless or bus devices
- 50 system users
- 8 sections (areas)
- 32 programmable PG outputs
- 20 independent calendar events
- 8 user SMS and voice reports
- Configurable up to 5 ARCs and 5 selectable ARC protocols
Included modules and hardware
The JA-103KRY configuration includes a JA-111R radio module, a JA-192Y GSM/GPRS communicator and built-in LAN. The panel provides a BUS terminal for wired peripherals and space for a backup battery (battery not included). Manufacturer dimensions: 268 x 225 x 83 mm.
Functions and use
System features cover day/night modes, short departure response, automatic configuration aids, advanced calendar scheduling and maintenance tools. Reporting options include SMS and voice messages to users as well as reporting to alarm receiving centres (ARC).
Compatibility
Not compatible with some older peripherals: JA-180A (wireless outdoor siren), JA-154J (two-way remote), JA-190X (PSTN communicator module).
Conditional compatibility: JA-112E keypad requires FW LU61501 or newer; JA-113E keypad requires FW LU61601 or newer; JA-118N (PG bus output module) compatible with LY68003 and newer (FW LY68002 and older work only when PG range in F-Link is set to a maximum of 32); JA-110I (section or PG bus indicator) compatible only when the PG range in F-Link is set to a maximum of 32.
Note: Information is based on official JABLOTRON specifications. Verify specific installation and firmware requirements in the official installation manual before deployment.
