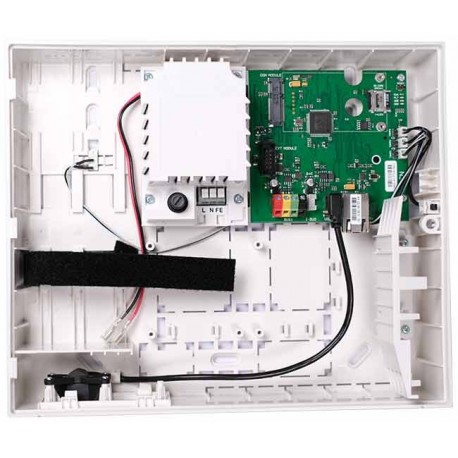

JAB Alarmna centrala sa LAN komunikatorom JA-103K View larger

JA-103K

JA-103K

New product

JABLOTRON ALARMS S.A.

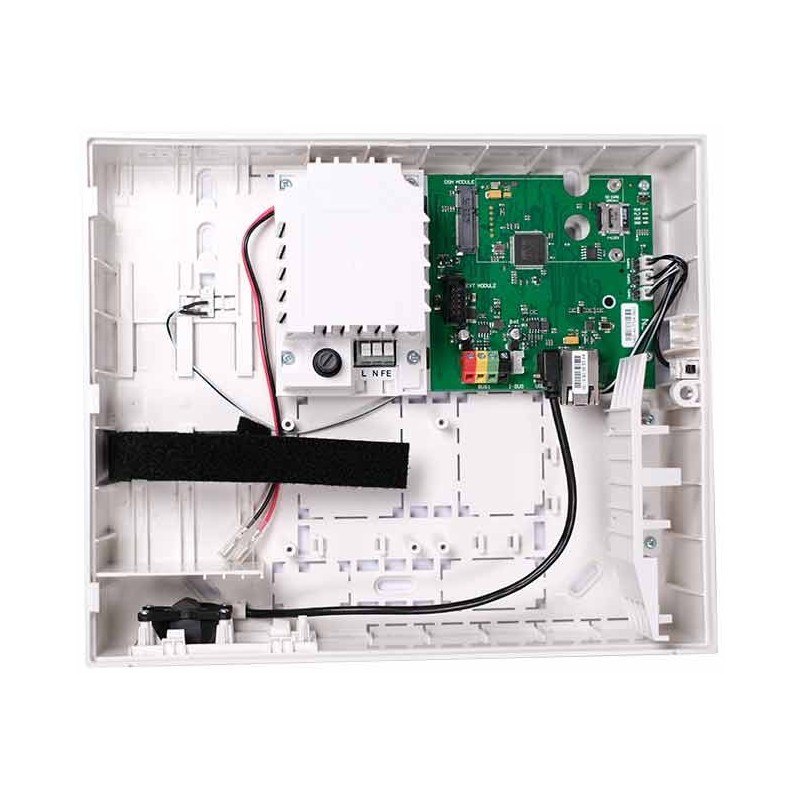

JABLOTRON JA-103K control panel with onboard LAN communicator and radio receiver. Supports up to 50 wireless or bus devices, 50 users, 8 sections and 32 programmable PG outputs. Suitable for family houses, offices and small businesses.

More details

Data sheet

Zones 50
Number of users 50
Sections 8
PG outputs 32
ARC 5
BUS connection terminal 1
LAN YES
GSM/3G GPSR YES/OPT
Radio modul NE

More info

JA-103K — overview

The JA-103K is a control panel from the JABLOTRON 100+ range with an integrated LAN communicator and radio front-end. It combines wired and wireless connectivity and is intended for medium-sized installations such as homes, offices and small commercial sites.

Main features

  • Support for up to 50 wireless or bus devices
  • 50 user codes and 8 sections
  • 32 programmable PG outputs
  • 20 independent calendar events
  • 8 user SMS and voice reports
  • Configuration for up to 5 ARCs and 5 selectable ARC protocols

Connectivity and extensions

The panel includes onboard LAN (Ethernet 10/100) and connectors for the built-in radio module JA-111R and an external GSM/GPRS communicator (JA-192Y) as an accessory. System sizing and parameter changes are performed via F-Link software (from version 2.0.0).

Compatibility notes

Check device compatibility and firmware requirements when designing the system. Some devices are explicitly not supported (for example JA-180A, JA-154J, JA-190X). Other peripherals (e.g. JA-112E, JA-113E, JA-118N, JA-110I) are supported only under certain firmware or F-Link PG-range settings.

Standards and system behaviour

JA-103K complies with applicable EN standards for intruder alarm systems and is classified as Security Grade/Degree 2. The panel stores an extensive event history to facilitate diagnostics and traceability.

Note: Verify firmware versions and PG range settings in F-Link before finalising system configuration, since some devices require specific firmware or PG-range limits to operate correctly.
