> >>>JA-107KR Control panel
JA-107KR View larger

JA-107KR Control panel

JA-107KR

New product

JABLOTRON ALARMS S.A.

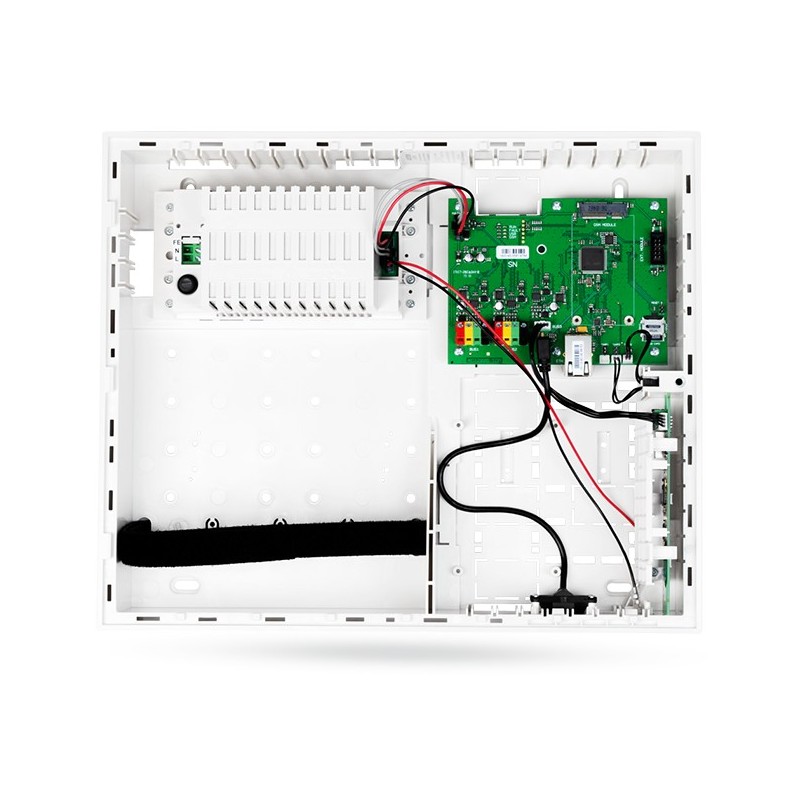

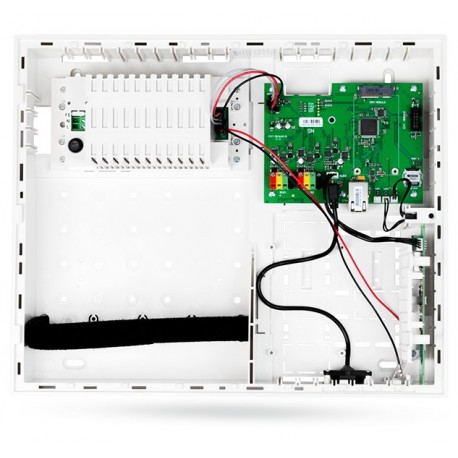

The JA-107KR is the most advanced control panel of the JABLOTRON 100+ system, intended for large residential complexes, offices and commercial sites. It supports multi‑section operation with up to 15 sections and extensive device capacity. System setup is performed in F‑Link (from v. 2.0.0).

More details

More info

The JA-107KR is an advanced control panel from the JABLOTRON 100+ family, designed for protecting large homes, administrative buildings and commercial or industrial sites. It offers scalable, reliable security management with support for multi‑section installations and a high number of users and outputs.

Key features

  • 120 wireless and up to 230 bus devices
  • 600 users
  • 15 sections
  • 128 programmable PG outputs
  • 64 mutually independent calendar events
  • 50 user SMS reports and 15 user voice reports
  • Support for up to 5 ARCs and 5 selectable ARC protocols

Connectivity and expansion: the panel provides two mutually independent terminal boards for bus connection, a connector for a built‑in radio module (JA‑111R) or a third terminal board (expandable with JA‑110Z‑D), and a connector for a GSM/GPRS communicator (JA‑192Y).

Available functions include maintenance, day/night mode, short departure response, automatic setting and advanced calendar features. System sizing and configuration are performed via the F‑Link software (from version 2.0.0).

Compatibility

The following products are not compatible with this panel: JA‑180A, JA‑154J, JA‑190X. The following are compatible under certain conditions: JA‑112E (FW LU61501+), JA‑113E (FW LU61601+), JA‑118N (LY68003+); note that some functions of JA‑118N and JA‑110I depend on PG range settings and firmware versions in F‑Link.

Installation must be performed only by trained technicians holding a valid Jablotron Alarms certificate.

Download

JA-107KR - test report

Download (232.52k)

JA-107K - test report

Download (244.31k)

JA-107KR - EU certifikat

Download (1.53M)

Accessories
