> >>>JA-107K control panel with LAN communicator

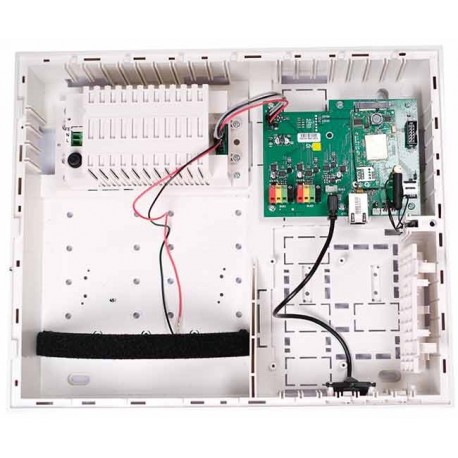

JAB Alarmna centrala JA-107K sa LAN komunikatoron View larger

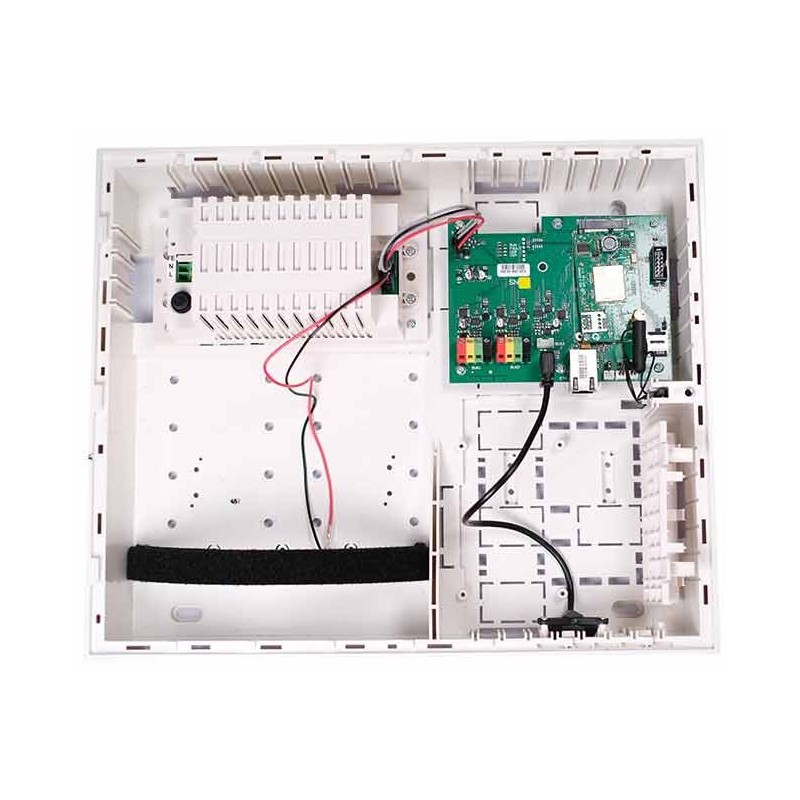

JA-107K control panel with LAN communicator

JA-107K

New product

JABLOTRON ALARMS S.A.

JA-107K is a high-capacity control panel from the JABLOTRON 100+ family with an integrated LAN communicator. Designed for large homes, office buildings and businesses, it supports mixed BUS and wireless installations and is configured via F‑Link software.

More details

Data sheet

Zones 230
Number of users 600
Sections 15
PG outputs 128
ARC 5
BUS connection terminal 3
LAN YES
GSM/3G GPSR YES/OPT
Radio modul NE

More info

JA-107K is an advanced JABLOTRON 100+ control panel intended for large or multi-section installations in residential complexes, administrative buildings and commercial premises. System configuration and sizing are performed using F‑Link software (from version 2.0.0). Installation must be carried out by a certified Jablotron technician.

Main capacities

The panel supports up to 120 wireless devices (positions 1–120) and up to 230 BUS devices. It manages up to 600 users and 15 independent sections. Other capacities include 128 programmable PG outputs, 64 independent calendar events, up to 50 SMS user reports and up to 15 voice reports. The system allows configuration of up to 5 ARCs with 5 selectable ARC protocols.

Hardware interfaces and power

The enclosure provides two mutually independent BUS terminal boards and one connector for a built-in radio module (JA-111R); a third terminal board can be added with JA-110Z-D. There is a connector for a GSM/GPRS communicator (JA-192Y) and the option to fit LTE communicators as needed.

Supply: 110–230 V AC (50/60 Hz), max current ~0.85 A. Back-up battery: 12 V / 18 Ah (lead‑gel). BUS voltage range 12.0–13.8 V. Maximum continuous current from the panel: 2000 mA permanent (3000 mA for 60 minutes; max 2000 mA per single BUS).

Functions and management

Features include maintenance mode, day/night operation, short‑exit response, automatic arming and advanced calendar functions. System programming and backups are handled in F‑Link, facilitating professional configuration for complex installations.

Compatibility notes

  • Recommended expansion modules: JA-111R (radio interface), JA-192Y / JA-194Y (GSM/LTE communicators), JA-110Z-D (terminal extension).
  • Certain devices are not compatible with JA-107K (examples: JA-180A, JA-154J, JA-190X) — verify compatibility when designing the system.
  • Intended for professional installation and commissioning by certified installers.

This text summarises verified technical data and functions. Refer to the manufacturer's technical documentation for full installation instructions and declarations of conformity.

Download

JA-107K - test report

Download (244.31k)

JA-107K - EU certifikat

Download (1.53M)

JA-107K - Dekl. o svojstvima

Download (170.75k)

Tehnička specifikacija JA-107K

Download (106.37k)
