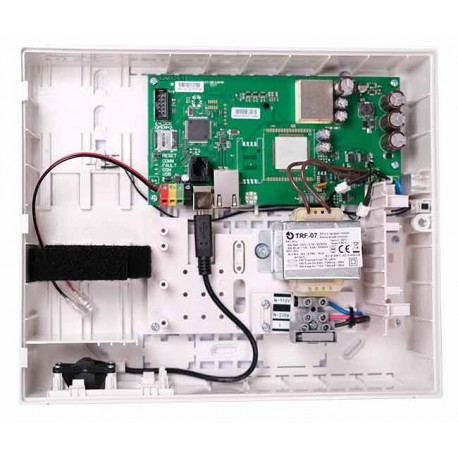

JAB Alarmna centrala sa LAN komunikatorom JA-100K View larger

JA-100K

JA-100K

New product

JABLOTRON ALARMS S.A.

The JA-100K is a compact JABLOTRON 100+ control panel with a built-in LAN communicator, intended for apartments and family houses. It supports up to 32 wireless or bus devices, 32 user codes and up to 4 partitions. Remote access and cloud features (MyJABLOTRON) are supported; GSM reporting is available via optional module.

More details

Data sheet

Zones 32
Number of users 32
Sections 4
PG outputs 4
ARC 5
BUS connection terminal 1
LAN YES
Radio modul NE

More info

Overview — JA-100K

JA-100K is the smallest control panel in the JABLOTRON 100+ family, designed for small residential and similar installations. The integrated LAN communicator enables data connection to ARC and the JABLOTRON CLOUD and full use of the MyJABLOTRON application. Installation and configuration must be performed by a certified installer via the F-Link tool.

Main features

  • up to 32 wireless or bus devices
  • up to 32 user codes
  • up to 4 partitions (sections)
  • up to 4 programmable PG outputs
  • 10 independent schedules
  • support for up to 5 ARCs and five selectable ARC protocols (e.g., JABLO IP, SIA IP, Contact ID, JABLO SMS)
  • SMS and voice reporting with optional JA-190Y GSM module (reports to up to 8 users)

The panel includes a connector for the JA-111R radio module (868 MHz) to support Jablotron wireless devices. Power backup uses one SA214-2.6 (12 V, up to 2.6 Ah) battery; the battery is not supplied with the unit.

Security and standards

Data protection is provided by the JABLOTRON protocol with AES encryption (minimum 128‑bit). The unit complies with relevant EN standards (EN 50131 series) and is classified as Security Grade 2 / Environmental Class II.

Physical and operational data: dimensions 268 × 225 × 83 mm, weight ≈ 1,450 g. LAN: RJ‑45 (CAT5). Event history stores a large record set (approx. 7 million latest events, with date/time).

JA-100K is suited for reliable basic alarm installations that require cloud connectivity and ARC reporting. Use certified installers and F-Link for programming and remote access setup.

Download

EU certifikat JA-100K

Download (1.53M)

DoC Deklaracija o sukladnosti

Download (146.85k)
