JA-116E-AN Bus touchscreen keypad with RFID reader - anthracite

Overview and purpose

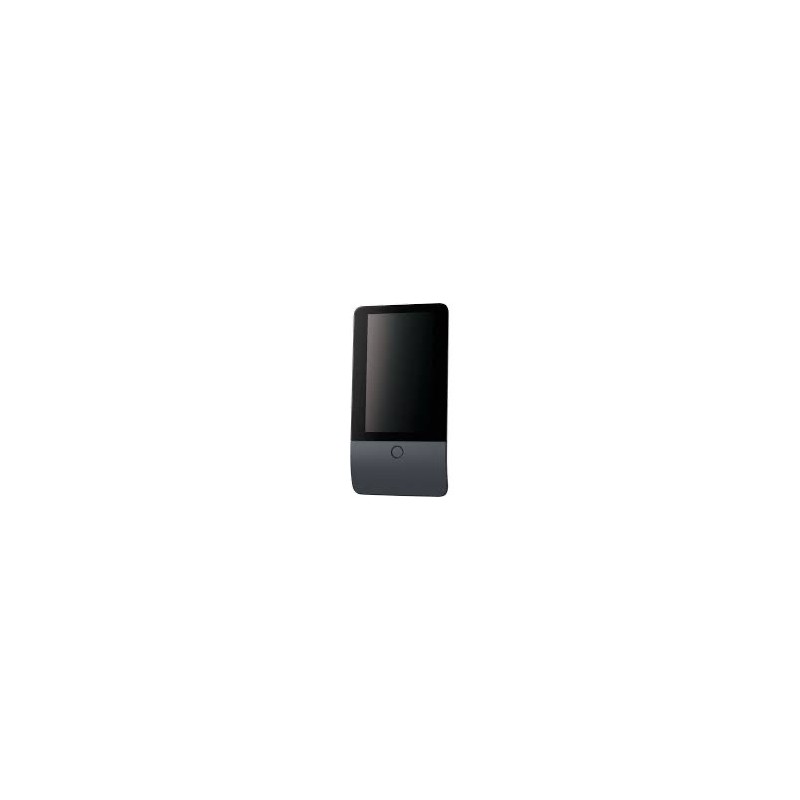

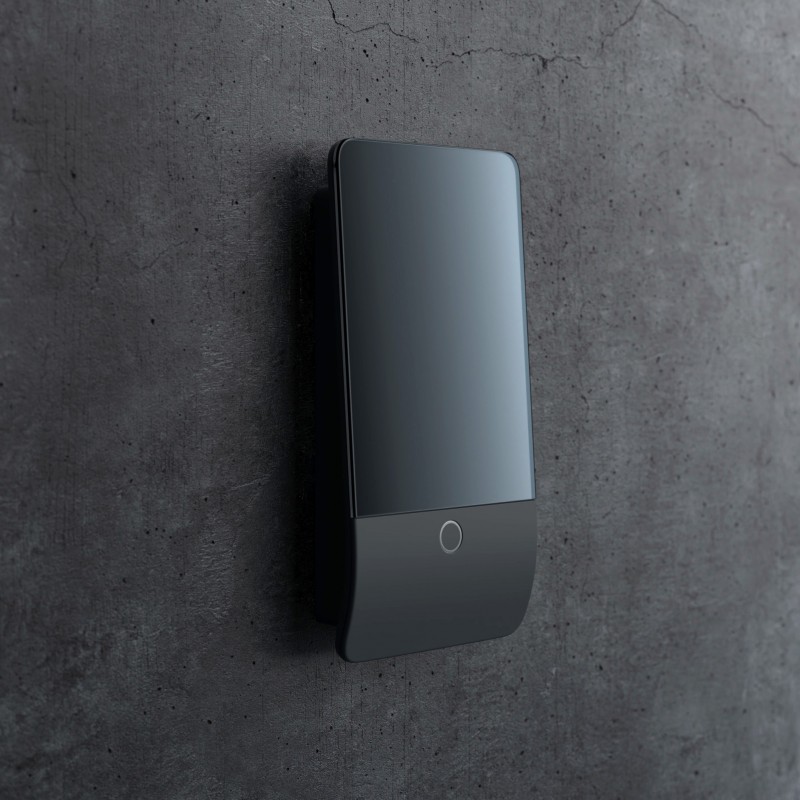

The JA-116E-AN is a BUS touchscreen keypad featuring a capacitive display and a built-in 125 kHz RFID reader. The unit displays system status, time and temperature readings from linked sensors and is intended as a user interface for JABLOTRON NATUS (JA-100/100+) alarm systems in indoor environments.

Installation and compatibility

Installation must be performed by a trained and certified Jablotron technician. Always switch off the control panel power before connecting the keypad to the BUS. The keypad is compatible with JA-102K, JA-103K and JA-107K control panels.

Technical specifications

• Power: from control panel BUS 12 V DC (8–15 V)
• Current consumption: backup 40 mA; nominal (display OFF) 85 mA; maximal (for cable sizing) 250 mA
• RFID: 125 kHz (maximum magnetic field strength -5.4 dBμA/m measured at 10 m)
• Dimensions: 95 × 183 × 30 mm; Weight: 248 g
• Operating temperature: -10 °C to +40 °C; Operational humidity: up to 75 % RH, no condensation
• Classification: Security grade 2 / Environmental class II (according to EN 50131-1)
• Standards: ETSI EN 300 330, EN 50130-4, EN 55032, EN IEC 62368-1, EN IEC 63000, EN 50131-1, EN 50131-3
• Certification body: Trezor Test s.r.o. (nr. 3025)
• Recommended mounting screw: 4 × ø 3.5 × 40 mm (half-round head)

Practical notes

The keypad operates over the BUS; when designing installations account for cumulative BUS current and choose cable cross-section accordingly. The touchscreen provides an intuitive interface for arming/disarming, zone status and user management; RFID allows fast credential-based access for authorised users.

Safety and compliance

JA-116E-AN is certified to security grade 2 and meets relevant EMC and safety standards. Follow the manufacturer installation manual for mounting height recommendations (eye level preferred) and detailed wiring instructions.
