> >>>>Motion detector JA-111P-WW

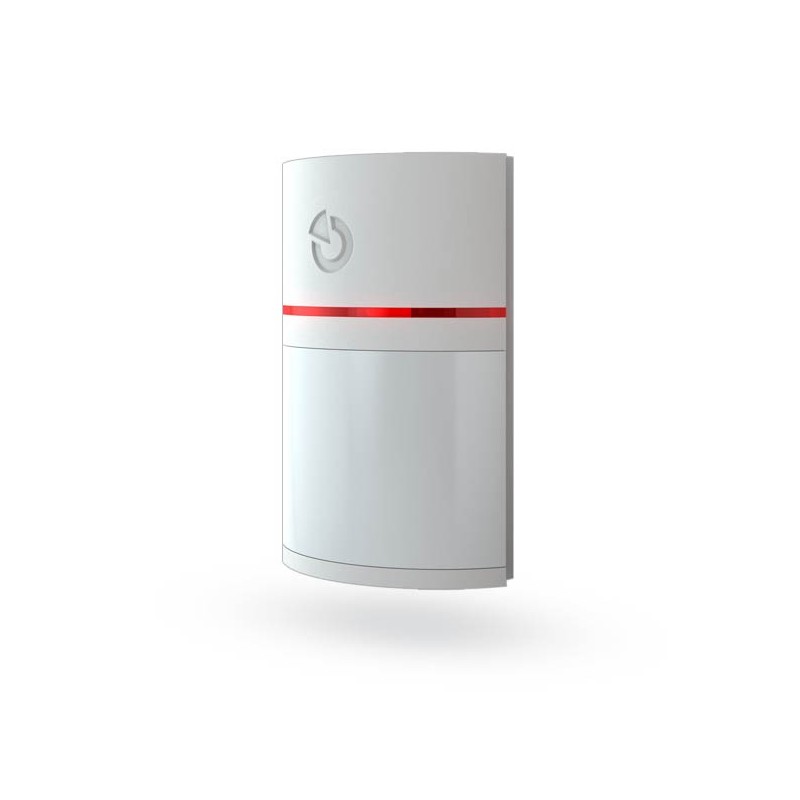

Motion detector JA-111P-WW View larger

Motion detector JA-111P-WW

JA-111P-WW

New product

JABLOTRON ALARMS S.A.

The JA-111P‑WW is an aesthetic BUS PIR motion detector for indoor protection in homes, shops and public spaces. It features a white lens, pulse activation and two-level adjustable false-alarm immunity. Coverage is 90°/12 m; powered from the control panel BUS (12 V DC).

More details

Data sheet

Connection method BUS

More info

JA-111P‑WW Bus PIR motion detector — white lens

The JA-111P‑WW is an addressable BUS PIR motion detector designed for reliable indoor motion detection. Its refined design fits upscale interiors; an aesthetic JA-193PL frame lets the detector be partly recessed into the wall for a discreet appearance. For ceiling mounting or inclined detection angles use the JA-191PL articulated bracket.

  • Pulse activation for fast, reliable motion response.
  • Can be used to control programmable PG outputs.
  • Adjustable false-alarm immunity with two levels (Standard / Increased).
  • Addressable device of the JABLOTRON 100+ system, occupying one device position.

The guaranteed detection coverage is 90° horizontally with a detection range up to 12 m.

Technical specifications:

  • Power: from the control panel BUS 12 V DC (9 … 15 V).
  • Current consumption: standby 2.5 mA; for cable selection (max.) 10 mA.
  • Recommended installation height: 2.5 m above the floor.
  • Detection angle / range: 90° / 12 m.
  • Dimensions: 62 × 90 × 37 mm; Weight: 63 g.
  • Classification: Security grade 2 / Environmental class II (EN 50131‑1).
  • Operating temperature: -10 °C to +40 °C; Average operating humidity: 75 % RH, non‑condensing.

Accessories: JA-191PL articulated bracket, JA-193PL-BOX wall mounting box and JA-193PL‑F frames (white or grey) are available for JA-111P‑WW and JA-111P‑WG models.

Download

EU certifikat JA-111P-WW

Download (1.53M)

Deklaracija JA-111P-WW

Download (169.98k)

Teh. specifikacija JA-111P-WW

Download (156.67k)
