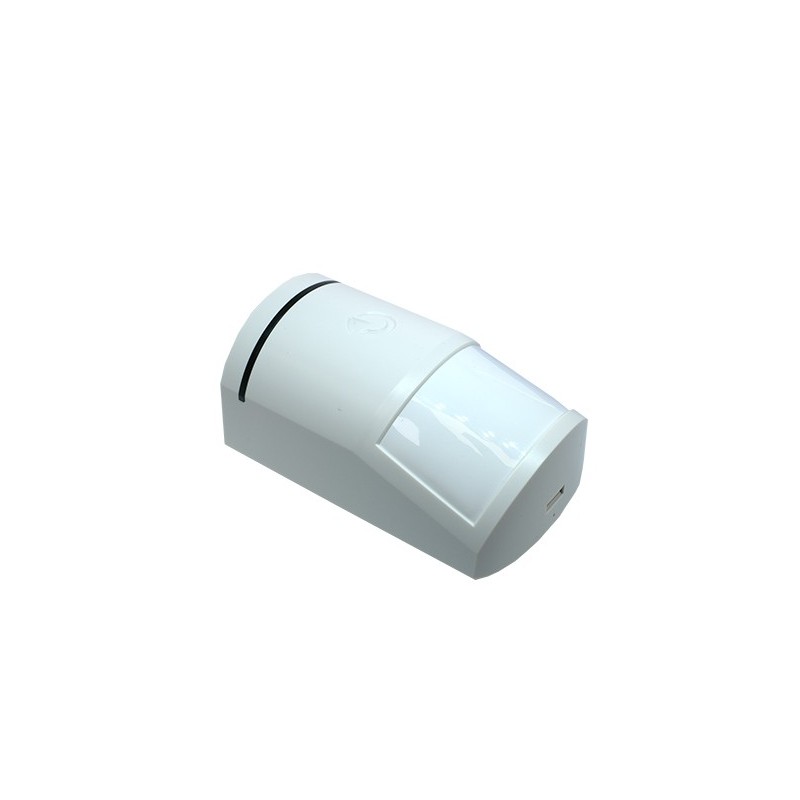

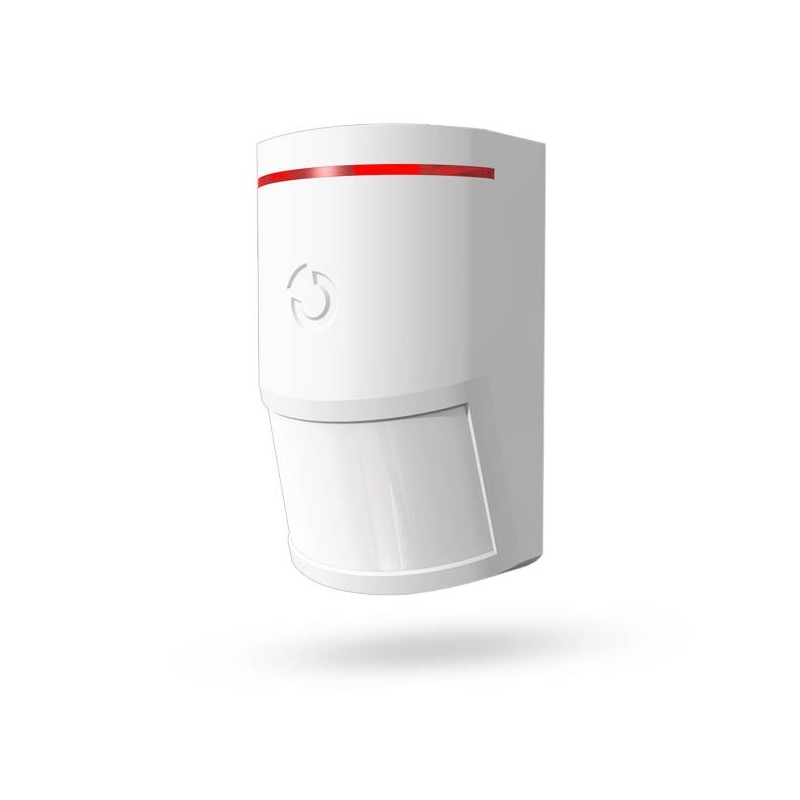

PIR motion detector JA-110P View larger
Previous Next

Bus PIR motion detector JA-110P

JA-110P

New product

JABLOTRON ALARMS S.A.

Wired BUS PIR motion detector for indoor protection. Detects movement of a warm body, occupies one address in the system and offers optional Smart Memory Indication (SMI). Detection can be tailored with interchangeable lenses for corridors, pets or curtain zones.

More details

Data sheet

Connection method BUS

More info

JA-110P Bus PIR motion detector

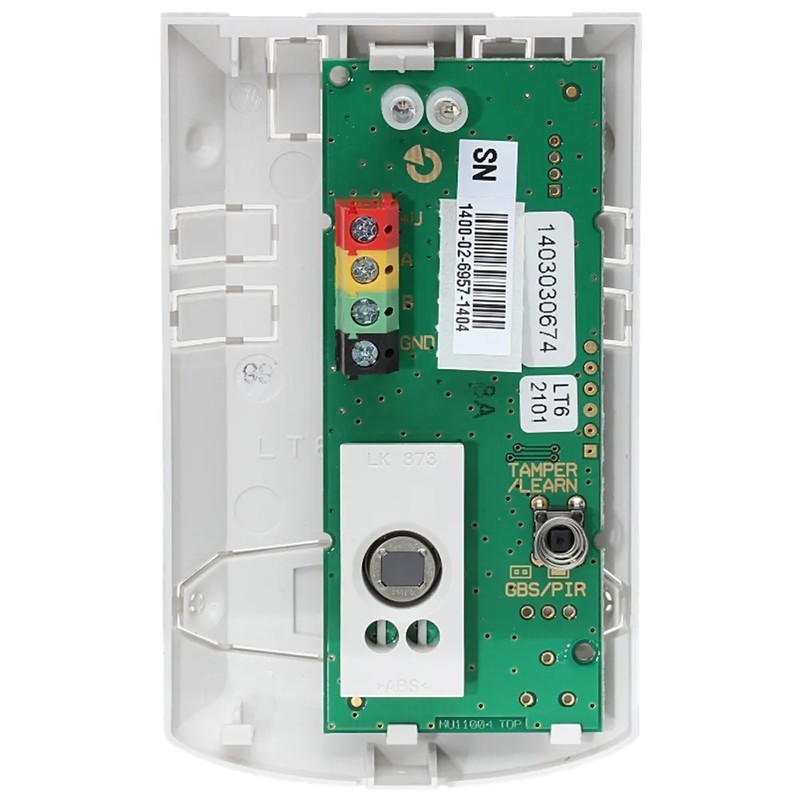

The JA-110P is a passive infrared (PIR) wired detector connected to the system BUS for interior intrusion detection. The device is addressable and occupies one position in the alarm system.

Interchangeable lenses: detection characteristics can be modified by replacing the supplied lens. Alternate lenses adapt the detector for long corridors, pet-immunity behaviour or a narrow curtain-type zone.

  • JS-7910 – pet variant (upper beams only, reduced floor coverage)
  • JS-7904 – corridor lens (extended range up to 20 m; increased immunity is not available with this lens)
  • JS-7902 – vertical curtain for barrier detection

Features and settings: false-alarm immunity is selectable on two levels (Standard/Enhanced); LED movement indication (SMI) provides visual confirmation of triggering and can be disabled. Device enrollment and internal settings are configured via the F-Link software or the control panel. Compatible with JA-101K, JA-102K, JA-103K, JA-106K and JA-107K control panels.

Installation

Recommended mounting height is 2.5 m above the floor. Avoid installation opposite windows, strong heat sources or areas with intense airflow to reduce false alarms. The detector can be mounted on a wall or in a corner; position in the BUS loop is not critical.

Technical specifications

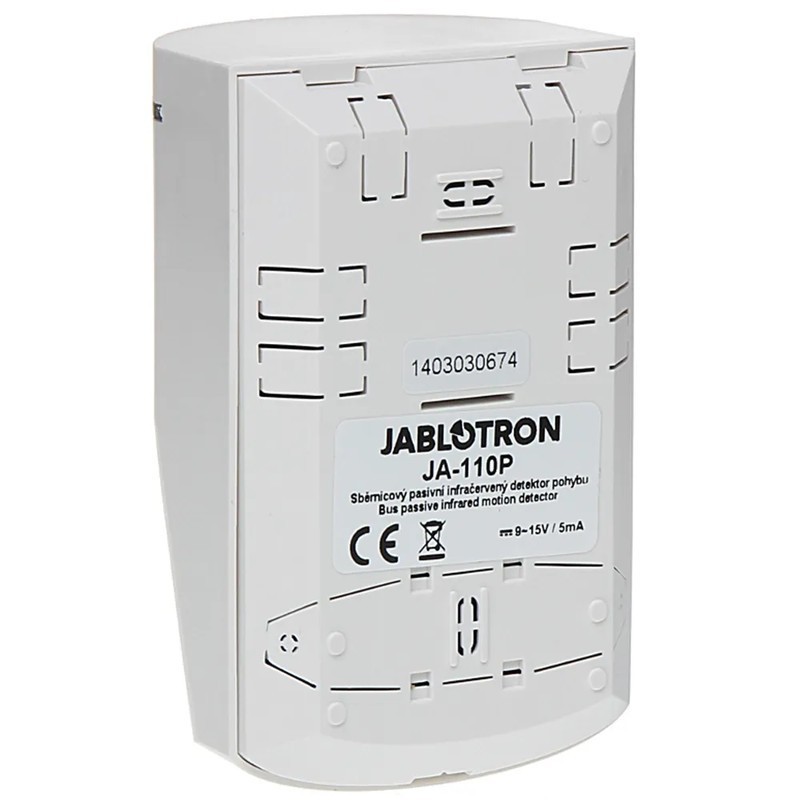

  • Power: from the control panel BUS 12 V DC (9 ... 15 V)
  • Current consumption: standby 5 mA; for cable choice 10 mA
  • Recommended installation height: 2.5 m above the floor
  • Detection angle / coverage: 110° / 12 m (with standard lens)
  • Dimensions: 60 x 95 x 55 mm
  • Weight: 75 g
  • Classification: Security grade 2 / Environmental class II (According to EN 50131-1)
  • Operating temperature: -10 °C to +40 °C
  • Average operating humidity: 75 % RH, without condensation
  • Certification body: Trezor Test s.r.o. (no. 3025), Telefication B.V
  • Complies with: EN 50131-1, EN 50131-2-2, EN 50130-4, EN 55032, EN 50581, T 031

Download

Europski certifikat JA-110P

Download (1.53M)

Deklaracija o sukladosti JA-110P

Download (170.76k)

Tehnička specifikacija JA-110P

Download (157.9k)

Uputa proizvođača JA-110P

Download (163.63k)
